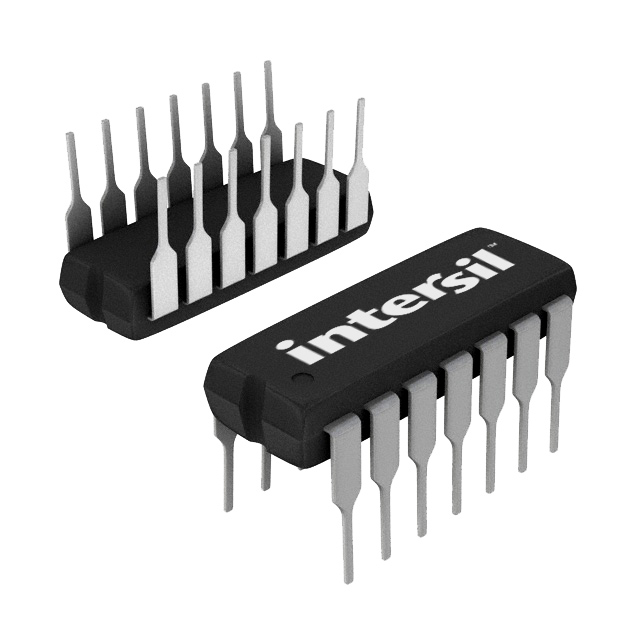

HA1-2420-2
IC SAMPL/HOLD 1 CIRCUIT 14CERDIPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation HA1-2420-2 is a single-circuit Sample and Hold Amplifier. This component, housed in a 14-CERDIP package, offers a 2.5 MHz gain bandwidth product and a 5V/µs slew rate. It operates with a supply voltage range of 24V to 30V and draws a quiescent current of 3.5mA. Key specifications include an input bias current of 40 nA and an output current capability of 15 mA per channel. The device features an input offset voltage of 2 mV and supports operation across a wide temperature range from -55°C to 125°C. The HA1-2420-2 is suitable for applications in instrumentation and data acquisition systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-CDIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | Sample and Hold |
| Operating Temperature | -55°C ~ 125°C |
| Current - Supply | 3.5mA |
| Slew Rate | 5V/µs |
| Gain Bandwidth Product | 2.5 MHz |
| Current - Input Bias | 40 nA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | 14-CERDIP |
| Number of Circuits | 1 |
| Current - Output / Channel | 15 mA |
| Voltage - Supply Span (Min) | 24 V |
| Voltage - Supply Span (Max) | 30 V |
Request a Quote
