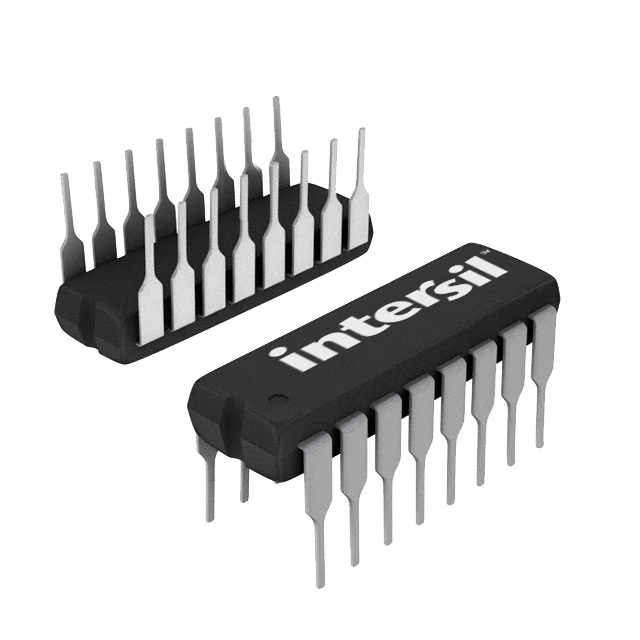

HA1-2404-4
IC OPAMP GP 4 CIRCUIT 16CERDIPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation HA1-2404-4 is a quad general-purpose operational amplifier housed in a 16-CERDIP package. This device offers a gain bandwidth product of 40 MHz and a slew rate of 30V/µs, making it suitable for demanding analog signal processing applications. Each channel features a typical input bias current of 50 nA and an output current capability of 20 mA. The operational amplifier operates across a supply voltage range from 20 V to 40 V, with a quiescent current consumption of 4.8 mA per channel. The HA1-2404-4 is designed for through-hole mounting and operates within an ambient temperature range of -25°C to 85°C. It finds application in industrial control systems, data acquisition, and audio processing equipment.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-CDIP (0.300"", 7.62mm) |
| Output Type | - |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | -25°C ~ 85°C |
| Current - Supply | 4.8mA (x4 Channels) |
| Slew Rate | 30V/µs |
| Gain Bandwidth Product | 40 MHz |
| Current - Input Bias | 50 nA |
| Voltage - Input Offset | 4 mV |
| Supplier Device Package | 16-CERDIP |
| Number of Circuits | 4 |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 20 V |
| Voltage - Supply Span (Max) | 40 V |
