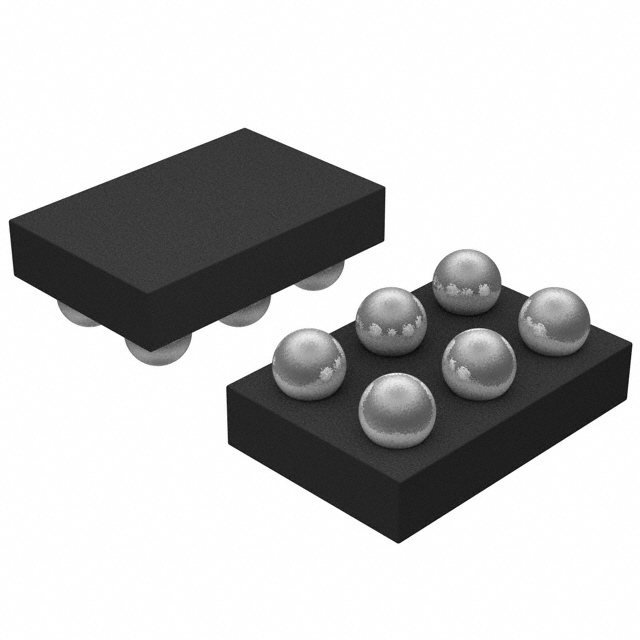

EL8176FIZ-T7
IC OPAMP GP 1 CIRCUIT 6WLCSPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Renesas Electronics Corporation EL8176FIZ-T7 is a single-circuit, general-purpose operational amplifier. This device features rail-to-rail output and operates across a supply voltage range of 2.4V to 5.5V. With a gain bandwidth product of 400 kHz and a -3dB bandwidth of 1 MHz, it is suitable for low-power applications. Key specifications include an input bias current of 500 pA, an output current capability of 31 mA, and a quiescent current of 85µA. The amplifier exhibits a slew rate of 0.13V/µs and a low input offset voltage of 75 µV. Packaged in a compact 6-WLCSP (3x2) format for surface mounting, the EL8176FIZ-T7 is provided on tape and reel. This component finds application in consumer electronics, portable devices, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFBGA, WLCSP |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 85µA |
| Slew Rate | 0.13V/µs |
| Gain Bandwidth Product | 400 kHz |
| Current - Input Bias | 500 pA |
| Voltage - Input Offset | 75 µV |
| Supplier Device Package | 6-WLCSP (3x2) |
| Number of Circuits | 1 |
| Current - Output / Channel | 31 mA |
| -3db Bandwidth | 1 MHz |
| Voltage - Supply Span (Min) | 2.4 V |
| Voltage - Supply Span (Max) | 5.5 V |
