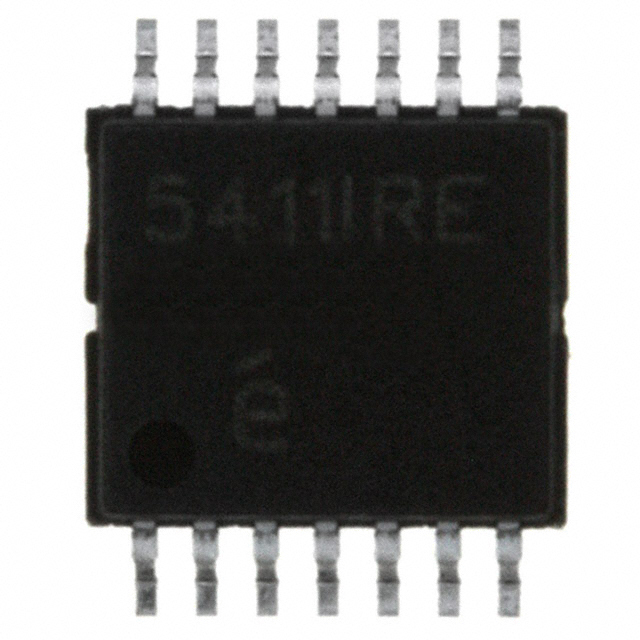

EL5411IRE-T7
IC OPAMP VFB 4 CIRCUIT 14HTSSOPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation's EL5411IRE-T7 is a 4-circuit voltage feedback operational amplifier from the EL5411 series. This device offers rail-to-rail output and a -3dB bandwidth of 60 MHz, with a gain bandwidth product of 32 MHz. It features a typical input bias current of 2 nA and a slew rate of 75 V/µs. The amplifier operates from a 4.5 V to 16.5 V supply span, consuming approximately 10 mA per channel. The output current capability is 65 mA per channel. Designed for surface mount applications, it is supplied in a 14-HTSSOP package, presented on tape and reel. This component is suitable for use in instrumentation and buffer amplifier applications across various industries.
Additional Information
Series: EL5411RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | 10mA (x4 Channels) |
| Slew Rate | 75V/µs |
| Gain Bandwidth Product | 32 MHz |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 3 mV |
| Supplier Device Package | 14-HTSSOP |
| Number of Circuits | 4 |
| Current - Output / Channel | 65 mA |
| -3db Bandwidth | 60 MHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
Request a Quote
Clients Also Buy
EL5411IRE
IC OPAMP VFB 4 CIRCUIT 14HTSSOP

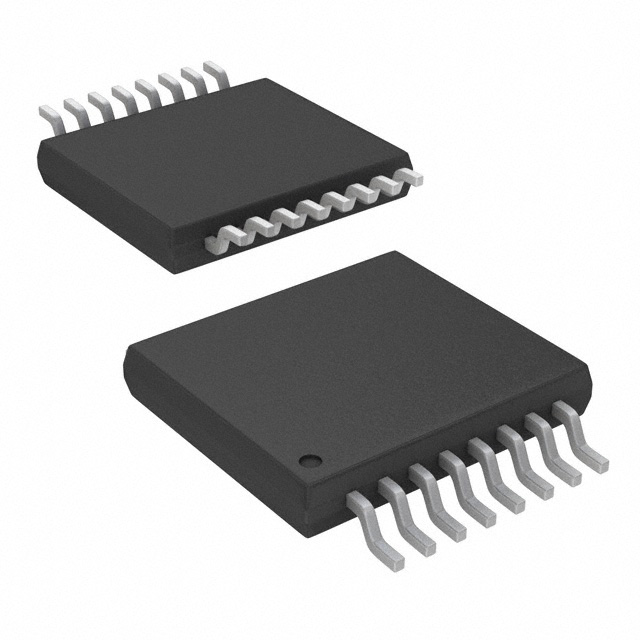

EL5411IREZ
