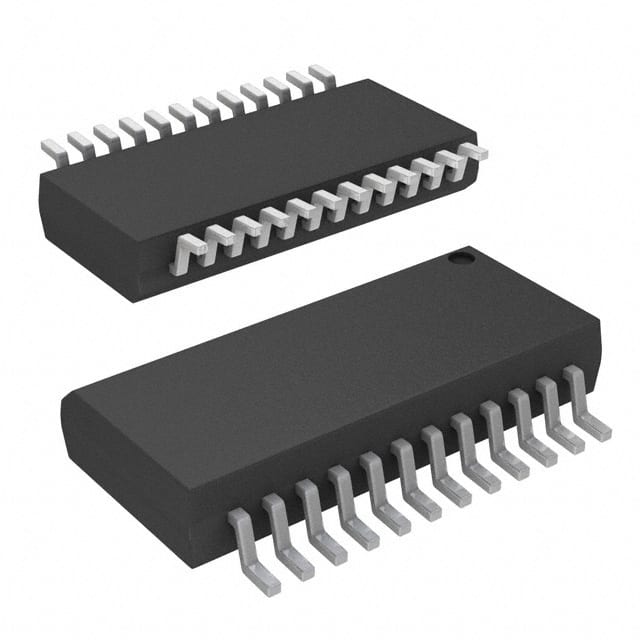

EL5375IUZ
IC OPAMP DIFF 3 CIRCUIT 24QSOPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation's EL5375IUZ is a high-performance, three-circuit differential amplifier housed in a 24-QSOP package. This component offers a 200 MHz gain-bandwidth product and a substantial -3dB bandwidth of 550 MHz, coupled with a rapid 900V/µs slew rate. Designed for demanding applications, it operates with a supply voltage range from 4.75V to 11V, consuming approximately 9.6mA per channel. Key specifications include a 12.5 µA input bias current and a 67 mA output current. The EL5375IUZ is suitable for surface mount applications and operates within an industrial temperature range of -40°C to 85°C. This amplifier finds utility in instrumentation and buffer amplifier circuits across various industries.
Additional Information
Series: EL5375RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-SSOP (0.154"", 3.90mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Differential |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | 9.6mA (x3 Channels) |
| Slew Rate | 900V/µs |
| Gain Bandwidth Product | 200 MHz |
| Current - Input Bias | 12.5 µA |
| Voltage - Input Offset | 3 mV |
| Supplier Device Package | 24-QSOP |
| Number of Circuits | 3 |
| Current - Output / Channel | 67 mA |
| -3db Bandwidth | 550 MHz |
| Voltage - Supply Span (Min) | 4.75 V |
| Voltage - Supply Span (Max) | 11 V |
