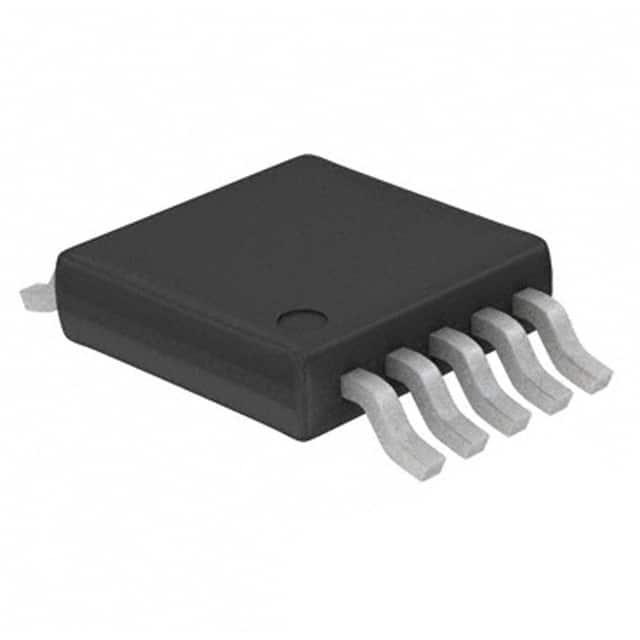

EL5262IYZ-T7
IC OPAMP CFA 2 CIRCUIT 10MSOPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation EL5262IYZ-T7 is a dual-channel current feedback amplifier designed for high-speed applications. Featuring a 500 MHz -3dB bandwidth and a 4000 V/µs slew rate, this device is well-suited for video processing, active filters, and general-purpose amplification in industrial and telecommunications equipment. The amplifier offers a current output of 100 mA per channel and a low supply current of 1.5 mA per channel. It operates from a 5V to 12V supply span and is available in a 10-MSOP surface-mount package. The component exhibits a typical input bias current of 2 µA and an input offset voltage of 1.5 mV. The EL5262IYZ-T7 is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | 1.5mA (x2 Channels) |
| Slew Rate | 4000V/µs |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 1.5 mV |
| Supplier Device Package | 10-MSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 100 mA |
| -3db Bandwidth | 500 MHz |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
