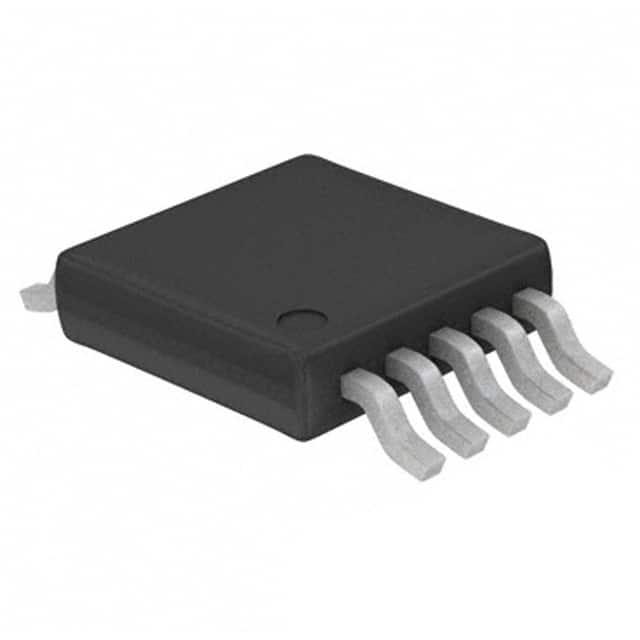

EL5262IYZ
IC OPAMP CFA 2 CIRCUIT 10MSOPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Renesas Electronics Corporation EL5262IYZ is a dual-circuit Current Feedback Amplifier offering a 500 MHz -3dB bandwidth. This device features a high slew rate of 4000V/µs and can deliver up to 100 mA of output current per channel. It operates with a supply voltage span from 5V to 12V, consuming a low quiescent current of 1.5 mA per channel. The input bias current is specified at 2 µA, with a typical input offset voltage of 1.5 mV. Packaged in a 10-MSOP (10-TFSOP) surface-mount configuration, the EL5262IYZ is suitable for applications in instrumentation and buffering across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | 1.5mA (x2 Channels) |
| Slew Rate | 4000V/µs |
| Current - Input Bias | 2 µA |
| Voltage - Input Offset | 1.5 mV |
| Supplier Device Package | 10-MSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 100 mA |
| -3db Bandwidth | 500 MHz |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
