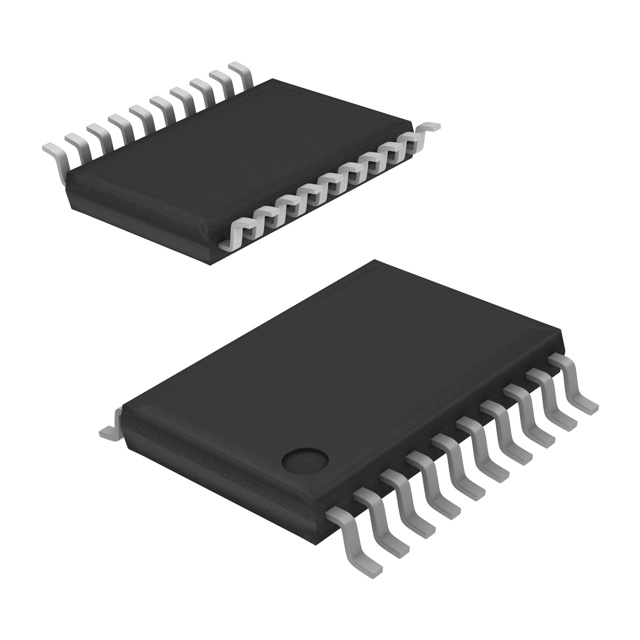

EL5223CR
IC BUFFER 8 CIRCUIT 20TSSOPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation EL5223CR is an 8-circuit buffer amplifier designed for demanding applications. This device features rail-to-rail output capabilities and a -3dB bandwidth of 12 MHz, making it suitable for signal conditioning and buffering in industrial control systems, medical equipment, and audio processing. The amplifier type is specifically a buffer, characterized by a low input bias current of 2 nA and an output current per channel of 200 mA. Operating from a supply voltage span of 4.5 V to 16.5 V, the EL5223CR exhibits a quiescent current of 5.7 mA per channel. Its 20-TSSOP package, measuring 4.40mm in width, facilitates surface mounting. The unit offers a slew rate of 18 V/µs and a minimal input offset voltage of 500 µV. Operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Buffer |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 5.7mA (x2 Channels) |
| Slew Rate | 18V/µs |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | 20-TSSOP |
| Number of Circuits | 8 |
| Current - Output / Channel | 200 mA |
| -3db Bandwidth | 12 MHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
