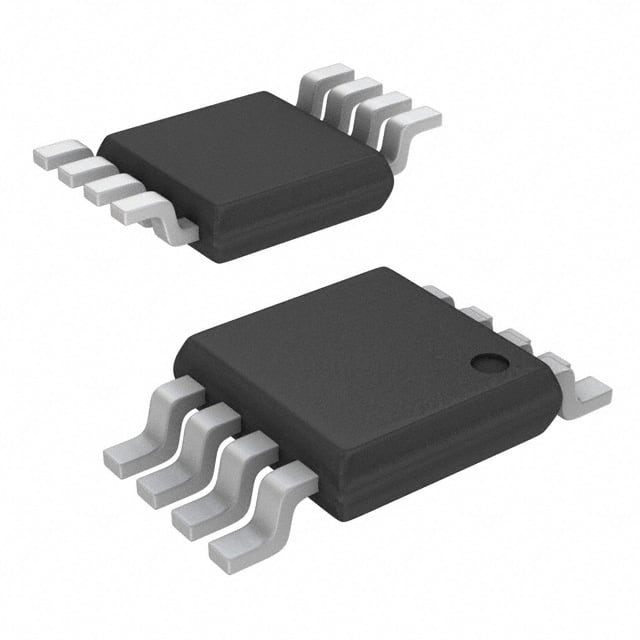

EL5220CYZ-T13
IC VOLTAGE FEEDBACK 2 CIRC 8MSOPManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation's EL5220CYZ-T13 is a dual-channel, rail-to-rail voltage feedback amplifier. This component offers a -3dB bandwidth of 12 MHz and a gain bandwidth product of 8 MHz, with a slew rate of 10V/µs. Designed for surface mounting, it is supplied in an 8-MSOP package, presented on tape and reel. Key specifications include an input bias current of 2 nA, an output current of 30 mA per channel, and a quiescent current of 500µA per channel. The device operates with a supply voltage span from 4.5V to 16.5V and maintains a 2 mV input offset voltage. This amplifier is utilized across various industries, including industrial automation and test and measurement equipment.
Additional Information
Series: EL5220RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 500µA (x2 Channels) |
| Slew Rate | 10V/µs |
| Gain Bandwidth Product | 8 MHz |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | 8-MSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 30 mA |
| -3db Bandwidth | 12 MHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
Request a Quote
Clients Also Buy
EL5220CYZ
IC VOLTAGE FEEDBACK 2 CIRC 8MSOP

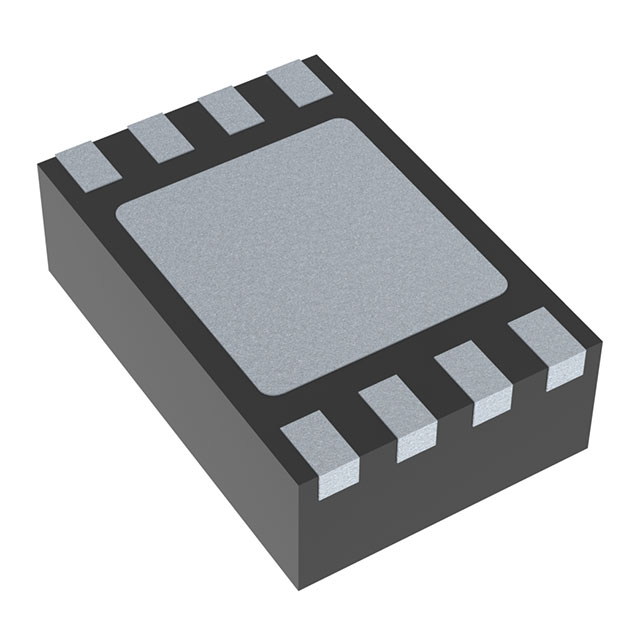

EL5220ILZ-T13
