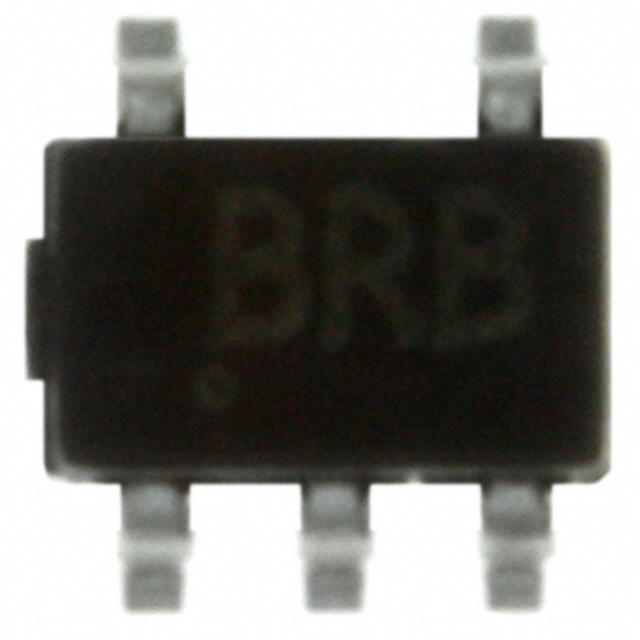

EL5161IC-T7
IC OPAMP CFA 1 CIRCUIT SC70-5Manufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Renesas Electronics Corporation EL5161IC-T7 is a single-circuit current feedback amplifier housed in a compact SC-70-5 package. This device offers a high -3dB bandwidth of 200 MHz and an impressive slew rate of 1700V/µs, making it suitable for high-speed signal processing applications. With a typical quiescent current of 750µA and an output current capability of 140 mA per channel, it balances performance with power efficiency. The amplifier type is current feedback, and it operates across a supply voltage range of 5V to 10V. Key parameters include an input bias current of 5 µA and an input offset voltage of 1.6 mV. This component finds application in instrumentation and buffering circuits, commonly used in sectors requiring precise analog signal conditioning. The EL5161IC-T7 is supplied in tape and reel packaging for automated assembly.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 750µA |
| Slew Rate | 1700V/µs |
| Current - Input Bias | 5 µA |
| Voltage - Input Offset | 1.6 mV |
| Supplier Device Package | SC-70-5 |
| Number of Circuits | 1 |
| Current - Output / Channel | 140 mA |
| -3db Bandwidth | 200 MHz |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 10 V |
