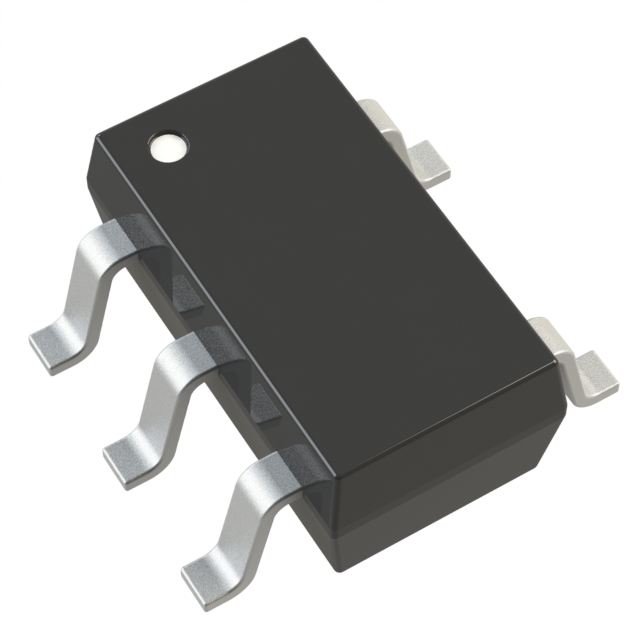

EL5120IWTZ-T7A
IC OPAMP VFB 1 CIRCUIT TSOT23-5Manufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Renesas Electronics Corporation EL5120IWTZ-T7A is a single-circuit, voltage-feedback operational amplifier featuring rail-to-rail output. This component offers a -3dB bandwidth of 12 MHz and a gain bandwidth product of 8 MHz, with a slew rate of 10V/µs. It operates with a supply current of 500µA and can accommodate a voltage supply span from 4.5V to 16.5V. The input bias current is a low 2 nA, and the output current per channel is 30 mA. The input offset voltage is 2 mV. Designed for surface mounting, it is packaged in a TSOT-23-5. This device finds application in instrumentation and buffer amplifier circuits.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 500µA |
| Slew Rate | 10V/µs |
| Gain Bandwidth Product | 8 MHz |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | TSOT-23-5 |
| Number of Circuits | 1 |
| Current - Output / Channel | 30 mA |
| -3db Bandwidth | 12 MHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 16.5 V |
