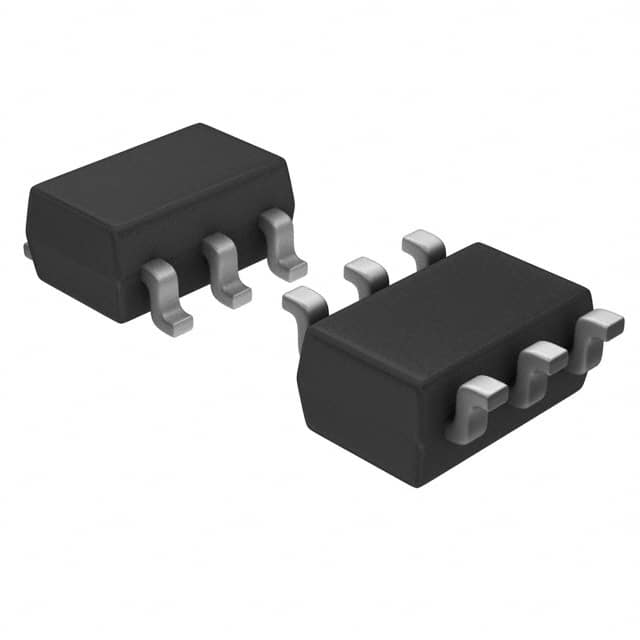

EL5106IWZ-T7A
IC OPAMP GP 1 CIRCUIT 6SOTManufacturer: Renesas Electronics Corporation
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
The Renesas Electronics Corporation EL5106IWZ-T7A is a single-circuit general-purpose operational amplifier designed for surface mount applications. This component features a -3dB bandwidth of 380 MHz and a high slew rate of 4500V/µs, making it suitable for high-speed signal processing. It operates with a supply voltage span from 5V to 12V and draws a quiescent current of 1.5mA. The input bias current is rated at 1.5 µA, with an input offset voltage of 1 mV. The output current capability is 100 mA per channel. The EL5106IWZ-T7A is supplied in a 6-SOT package, delivered on tape and reel. This amplifier finds application in areas such as video processing, active filters, and general signal conditioning within the instrumentation sector.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 1.5mA |
| Slew Rate | 4500V/µs |
| Current - Input Bias | 1.5 µA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 6-SOT |
| Number of Circuits | 1 |
| Current - Output / Channel | 100 mA |
| -3db Bandwidth | 380 MHz |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
