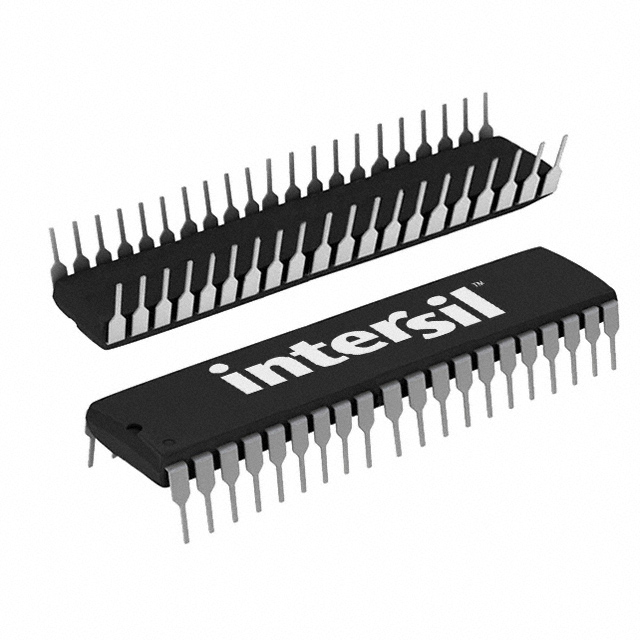

CMP82C55AZ
IC XPNDR PARALLEL 40DIPManufacturer: Renesas Electronics Corporation
Categories: I/O Expanders
Quality Control: Learn More
Renesas Electronics Corporation CMP82C55AZ is a 24-bit parallel I/O expander housed in a 40-PDIP package. This component facilitates expanded input/output capabilities through a parallel interface. It operates within a voltage supply range of 4.5V to 5.5V and supports output sourcing and sinking currents up to 2.5mA. The CMP82C55AZ features open drain output types and is designed for through-hole mounting. Operating temperatures range from 0°C to 70°C. This device is commonly utilized in industrial automation, consumer electronics, and telecommunications applications where increased peripheral control is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 40-DIP (0.600"", 15.24mm) |
| Output Type | Open Drain |
| Mounting Type | Through Hole |
| Interface | Parallel |
| Number of I/O | 24 |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Interrupt Output | No |
| Supplier Device Package | 40-PDIP |
| Current - Output Source/Sink | 2.5mA |
| Programmable | Not Verified |
