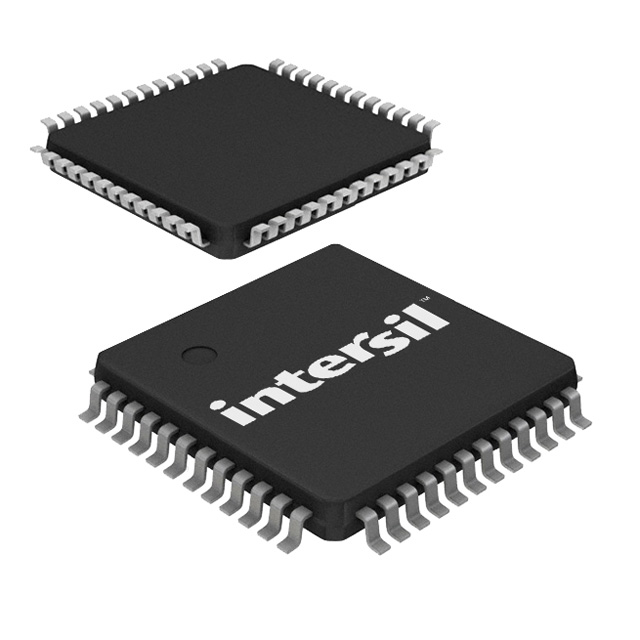

ISL6112INZA
IC HOT PLUG CTRLR PCI EXP 48TQFPManufacturer: Renesas Electronics Corporation
Categories: Hot Swap Controllers
Quality Control: Learn More
The Renesas Electronics Corporation ISL6112INZA is a 6-channel hot plug controller designed for PCI Express® applications. This device facilitates the safe insertion and removal of PCI Express® cards from live backplanes. It features programmable current limiting and fault timeout functionalities, along with integrated thermal limit and undervoltage lockout (UVLO) protection. The ISL6112INZA supports both internal switches and operates from 3.3V and 12V supply voltages, drawing a typical supply current of 900 µA. Housed in a 48-TQFP (7x7) surface-mount package, this controller is suitable for demanding environments, operating within a temperature range of -40°C to 85°C. Its robust design makes it an ideal component for high-availability systems and telecommunications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | Thermal Limit, UVLO |
| Packaging | Tray |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Type | Hot Plug Controller |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.3V, 12V |
| Applications | PCI Express® |
| Internal Switch(s) | Both |
| Current - Output (Max) | - |
| Supplier Device Package | 48-TQFP (7x7) |
| Programmable Features | Current Limit, Fault Timeout |
| Number of Channels | 6 |
| Current - Supply | 900 µA |
