ISL6700IRZ-T

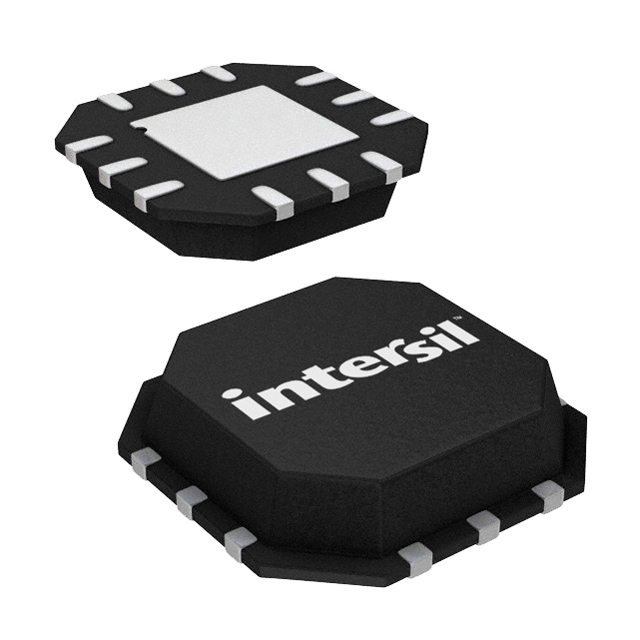

IC GATE DRVR HALF-BRIDGE 12QFNManufacturer: Renesas Electronics Corporation
Categories: Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation's ISL6700IRZ-T is a half-bridge gate driver IC designed for efficient power conversion applications. This component features independent channels with a non-inverting input logic. It delivers peak output currents of 1.4A sourcing and 1.3A sinking, with typical rise and fall times of 5ns. The device supports a high-side voltage up to 80V with a bootstrap function and operates from a supply voltage range of 9V to 15V. The logic voltage thresholds are 0.8V for VIH and 2.2V for VIL. Packaged in a 12-QFN (4x4) with an exposed pad, this surface-mount component is suitable for demanding environments, operating from -40°C to 125°C. The ISL6700IRZ-T is utilized in various industries including industrial power supplies, electric vehicle charging, and renewable energy systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 9V ~ 15V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 80 V |
| Supplier Device Package | 12-QFN (4x4) |
| Rise / Fall Time (Typ) | 5ns, 5ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1.4A, 1.3A |
| Programmable | Not Verified |
