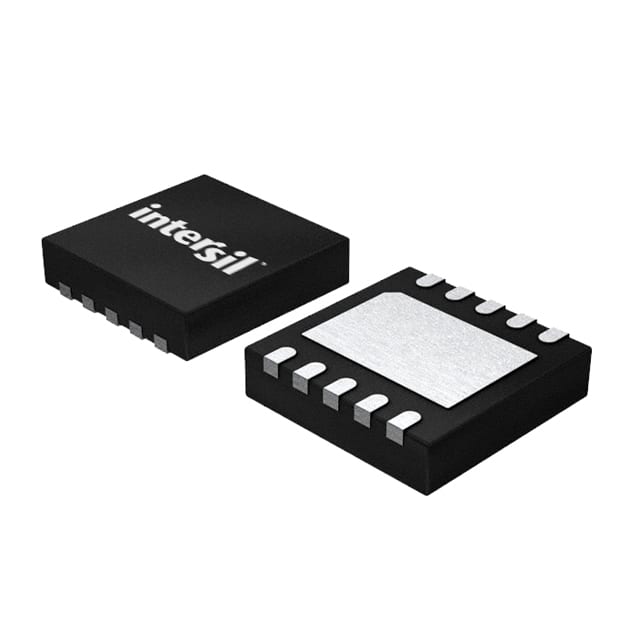

ISL6622AIRZ-T
IC GATE DRVR HALF-BRIDGE 10DFNManufacturer: Renesas Electronics Corporation
Categories: Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation's ISL6622AIRZ-T is a dual-channel, synchronous half-bridge gate driver IC. This component is designed for driving N-channel MOSFETs in half-bridge configurations, offering peak output currents of 1.25A source and 2A sink. The device operates within a supply voltage range of 6.8V to 13.2V, with a maximum high-side bootstrap voltage of 36V. Its non-inverting input logic and 10-DFN (3x3) exposed pad package facilitate efficient surface mounting. Typical rise and fall times are 26ns and 18ns, respectively, supporting high-frequency switching applications. The ISL6622AIRZ-T is suitable for power supply, industrial power, and automotive applications requiring robust gate drive performance. It operates across an ambient temperature range of -40°C to 125°C (TJ) and is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 6.8V ~ 13.2V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 36 V |
| Supplier Device Package | 10-DFN (3x3) |
| Rise / Fall Time (Typ) | 26ns, 18ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 1.25A, 2A |
| Programmable | Not Verified |
