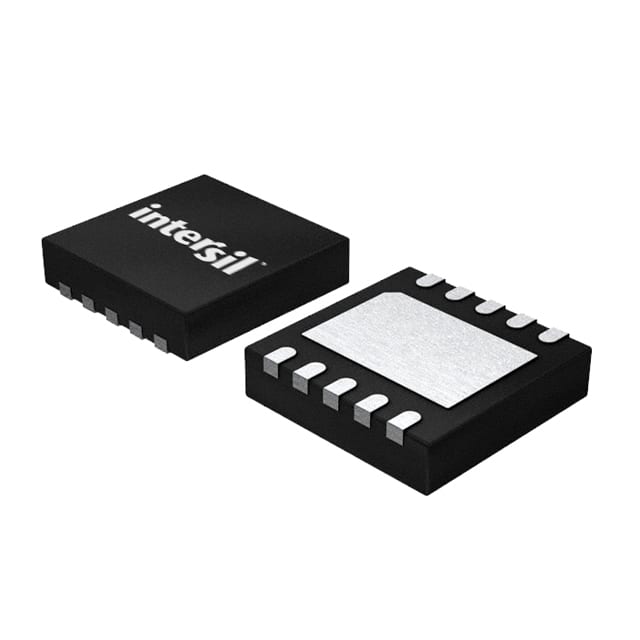

ISL6615IRZ-T
IC GATE DRVR HALF-BRIDGE 10DFNManufacturer: Renesas Electronics Corporation
Categories: Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation ISL6615IRZ-T is a half-bridge gate driver IC designed for efficient power conversion applications. This component features two non-inverting drivers, each capable of sourcing 2.5A and sinking 4A peak output current, enabling rapid switching of N-channel MOSFETs. The device operates with a supply voltage range of 6.8V to 13.2V and supports a high-side bootstrap voltage of up to 36V, making it suitable for high-voltage switching designs. Typical rise and fall times are 13ns and 10ns, respectively, contributing to reduced switching losses. The ISL6615IRZ-T is packaged in a 10-VFDFN exposed pad (3x3) for surface mounting and is supplied on tape and reel. This driver is commonly utilized in automotive, industrial, and telecom power supply systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 6.8V ~ 13.2V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 36 V |
| Supplier Device Package | 10-DFN (3x3) |
| Rise / Fall Time (Typ) | 13ns, 10ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 2.5A, 4A |
| Programmable | Not Verified |
