ISL6615AIBZ

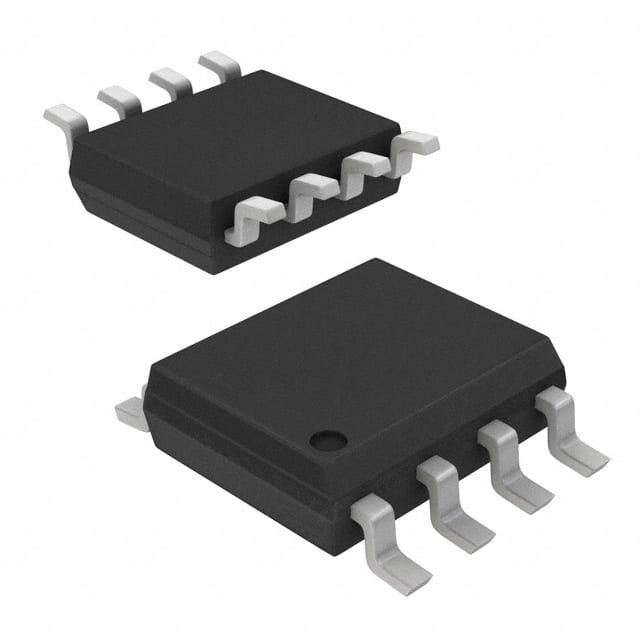

IC GATE DRVR HALF-BRIDGE 8SOICManufacturer: Renesas Electronics Corporation
Categories: Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation ISL6615AIBZ is a half-bridge gate driver IC designed for efficient control of N-channel MOSFETs. This non-inverting device features two independent drivers, each capable of delivering peak output currents of 2.5A source and 4A sink. The ISL6615AIBZ supports a high-side voltage up to 36V, with a supply voltage range of 6.8V to 13.2V. Typical rise and fall times are 13ns and 10ns respectively, facilitating high-frequency switching applications. The component is housed in an 8-SOIC package for surface mounting and operates across a temperature range of -40°C to 125°C. This driver finds application in power supply circuits, motor control, and power factor correction systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 6.8V ~ 13.2V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 36 V |
| Supplier Device Package | 8-SOIC |
| Rise / Fall Time (Typ) | 13ns, 10ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 2.5A, 4A |
| Programmable | Not Verified |
