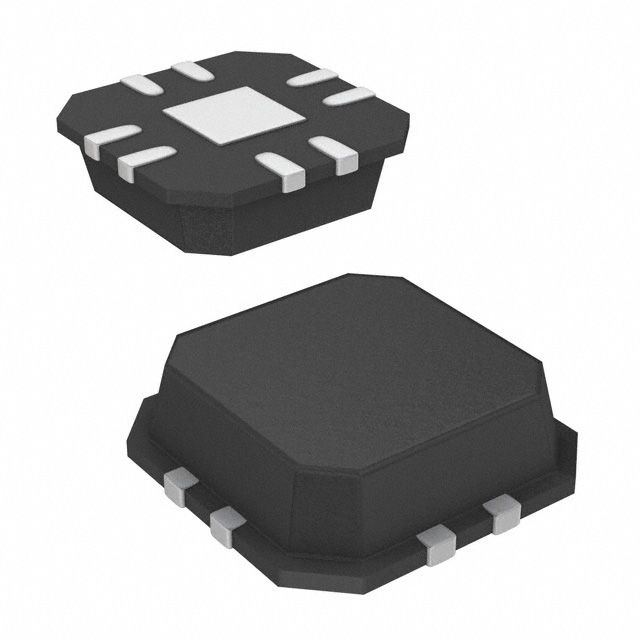

ISL6609IRZ-T
IC GATE DRVR HALF-BRIDGE 8QFNManufacturer: Renesas Electronics Corporation
Categories: Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation ISL6609IRZ-T is a half-bridge gate driver IC designed for efficient control of N-channel MOSFETs in half-bridge configurations. This synchronous driver features a non-inverting input and supports a high-side voltage up to 36V with a bootstrap capability. The device delivers a peak output current of 4A (sink), enabling rapid switching transitions with typical rise and fall times of 8ns. Operating across a supply voltage range of 4.5V to 5.5V and an extended temperature range of -40°C to 125°C, the ISL6609IRZ-T is suitable for demanding applications in power supplies, motor control, and industrial automation. It is supplied in an 8-QFN (3x3) package on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 36 V |
| Supplier Device Package | 8-QFN (3x3) |
| Rise / Fall Time (Typ) | 8ns, 8ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1V, 2V |
| Current - Peak Output (Source, Sink) | -, 4A |
| Programmable | Not Verified |
