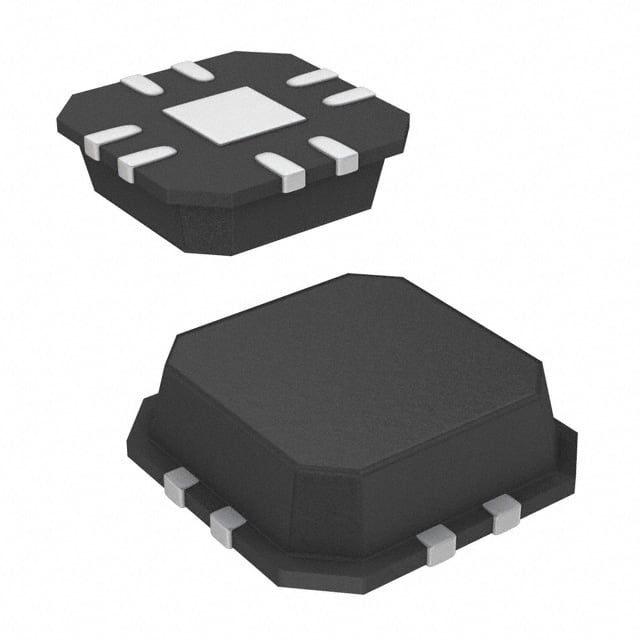

ISL6609IRZ
IC GATE DRVR HALF-BRIDGE 8QFNManufacturer: Renesas Electronics Corporation
Categories: Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation's ISL6609IRZ is a dual, half-bridge gate driver designed for efficient control of N-Channel MOSFETs. This device operates with a supply voltage range of 4.5V to 5.5V, featuring non-inverting inputs and a high-side bootstrap voltage capability of up to 36V. The ISL6609IRZ delivers robust performance with a peak output current of 4A (sink) and rise/fall times of 8ns, ensuring rapid switching transitions. Its 8-QFN (3x3) package with an exposed pad facilitates effective thermal management for demanding applications. This component is commonly utilized in power supply designs, motor control, and DC-DC converters across various industrial and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 36 V |
| Supplier Device Package | 8-QFN (3x3) |
| Rise / Fall Time (Typ) | 8ns, 8ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1V, 2V |
| Current - Peak Output (Source, Sink) | -, 4A |
| Programmable | Not Verified |
