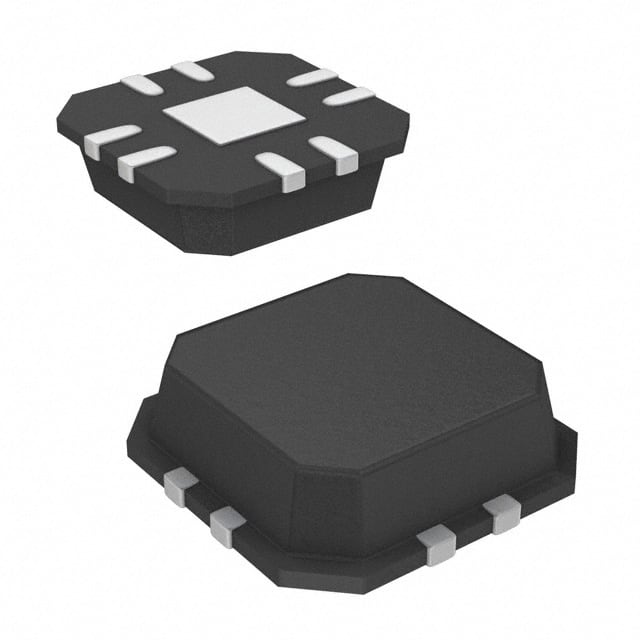

ISL6609ACRZ
IC GATE DRVR HALF-BRIDGE 8QFNManufacturer: Renesas Electronics Corporation
Categories: Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation ISL6609ACRZ is a half-bridge gate driver designed for demanding power conversion applications. This non-inverting device provides two independent gate drive channels, each capable of sourcing and sinking peak output currents of 4A. It is optimized for driving N-channel MOSFETs in half-bridge configurations. Key specifications include a bootstrap voltage capability of up to 36V, supporting a wide range of switching applications. The logic thresholds for VIH and VIL are 2V and 1V, respectively, ensuring compatibility with standard logic levels. Operating from a supply voltage of 4.5V to 5.5V, the ISL6609ACRZ offers typical rise and fall times of 8ns, facilitating efficient switching. This component is commonly utilized in power supplies, motor drives, and telecommunications infrastructure. It is supplied in an 8-QFN (3x3) package, suitable for surface mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 125°C (TJ) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 36 V |
| Supplier Device Package | 8-QFN (3x3) |
| Rise / Fall Time (Typ) | 8ns, 8ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1V, 2V |
| Current - Peak Output (Source, Sink) | -, 4A |
| Programmable | Not Verified |
