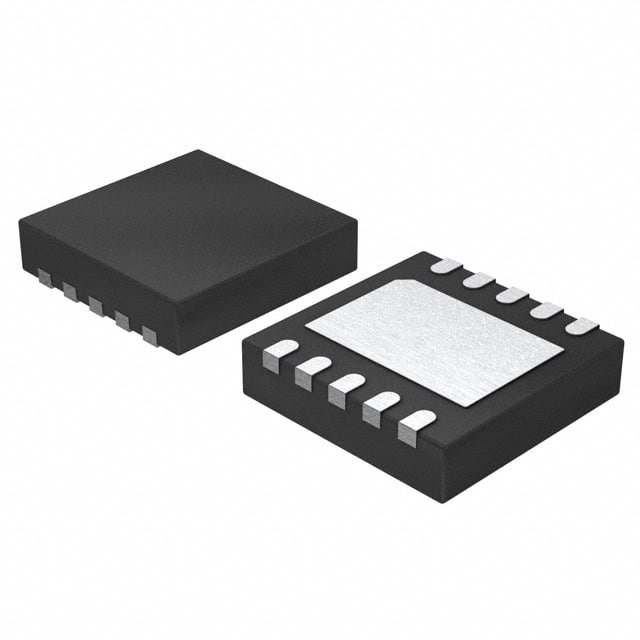

ISL6596IRZ-T
IC GATE DRVR HALF-BRIDGE 10DFNManufacturer: Renesas Electronics Corporation
Categories: Gate Drivers
Quality Control: Learn More
The Renesas Electronics Corporation ISL6596IRZ-T is a high-performance half-bridge gate driver IC. This component is designed for driving N-channel MOSFETs in synchronous configurations, featuring two drivers in a compact 10-DFN (3x3) exposed pad package. It offers a peak output current of 4A (sink) and a high-side voltage capability up to 36V via bootstrap. The non-inverting input logic simplifies control, and the device exhibits typical rise and fall times of 8ns, ensuring efficient switching. Operating over an extended temperature range of -40°C to 125°C (TJ), the ISL6596IRZ-T is suitable for demanding applications in power supplies, motor control, and battery charging systems. This surface-mount component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 36 V |
| Supplier Device Package | 10-DFN (3x3) |
| Rise / Fall Time (Typ) | 8ns, 8ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | -, 4A |
| Programmable | Not Verified |
