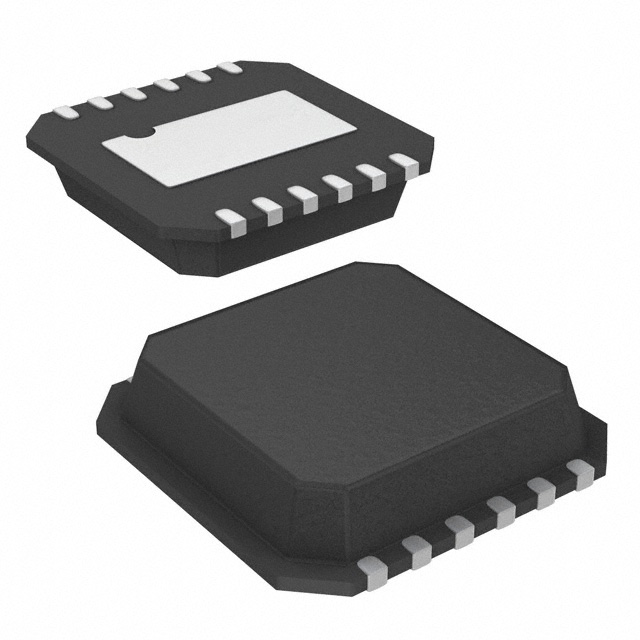

HIP2104FRAANZ-T7A
IC GATE DRVR HALF-BRIDGE 12DFNManufacturer: Renesas Electronics Corporation
Categories: Gate Drivers
Quality Control: Learn More
The Renesas Electronics Corporation HIP2104FRAANZ-T7A is a half-bridge gate driver IC featuring a non-inverting input. This component is designed for driving N-channel MOSFETs in half-bridge configurations. It provides independent channels with peak output currents of 1A source and 1A sink, facilitating efficient switching. The device operates with a supply voltage range of 4.5V to 14V and supports a maximum bootstrap voltage of 60V. Typical rise and fall times are 8ns and 2ns, respectively. The HIP2104FRAANZ-T7A is housed in a 12-VFDFN exposed pad package, suitable for surface mounting. Its operating temperature range is -40°C to 125°C (TJ). This versatile gate driver finds application in various industrial power management systems, including motor control and power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 4.5V ~ 14V |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 60 V |
| Supplier Device Package | 12-DFN (4x4) |
| Rise / Fall Time (Typ) | 8ns, 2ns |
| Channel Type | Independent |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.63V, 2.06V |
| Current - Peak Output (Source, Sink) | 1A, 1A |
| Programmable | Not Verified |
