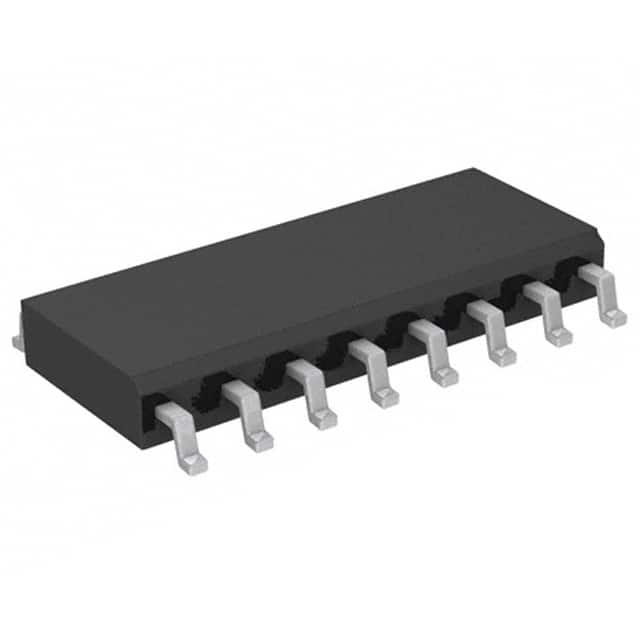

EL7457CSZ-T13
IC GATE DRVR HI/LOW SIDE 16SOICManufacturer: Renesas Electronics Corporation
Categories: Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation's EL7457CSZ-T13 is a four-channel, independent gate driver designed for high-side or low-side configurations. This device features N-channel and P-channel MOSFET gate driving capabilities with a peak output current of 2A source and 2A sink. The non-inverting input logic operates with VIL of 0.8V and VIH of 2V. With a supply voltage range of 4.5V to 18V, it offers typical rise and fall times of 13.5ns and 13ns respectively. Packaged in a 16-SOIC (0.154", 3.90mm Width) for surface mounting, the EL7457CSZ-T13 operates within an ambient temperature range of -40°C to 85°C. This component is commonly utilized in power supply, motor control, and industrial automation applications. The product is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 18V |
| Input Type | Non-Inverting |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 13.5ns, 13ns |
| Channel Type | Independent |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 4 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
