EL7457CL-T7
IC GATE DRVR HI/LOW SIDE 16QFNManufacturer: Renesas Electronics Corporation
Categories: Gate Drivers
Quality Control: Learn More
Renesas Electronics Corporation's EL7457CL-T7 is a four-channel, independent gate driver IC designed for surface mount applications. This component features N-channel and P-channel MOSFET gate driving capability with a non-inverting input. It provides robust performance with peak output currents of 2A sourcing and sinking, and fast rise/fall times of 13.5ns and 13ns respectively. Operating across a supply voltage range of 4.5V to 18V, the EL7457CL-T7 supports both high-side and low-side driven configurations. The device's logic voltage thresholds are specified at 0.8V for VIL and 2V for VIH. Packaged in a 16-QFN (4x4) with an exposed pad, this component is supplied on tape and reel. It finds application in power management systems, motor control, and automotive electronics.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

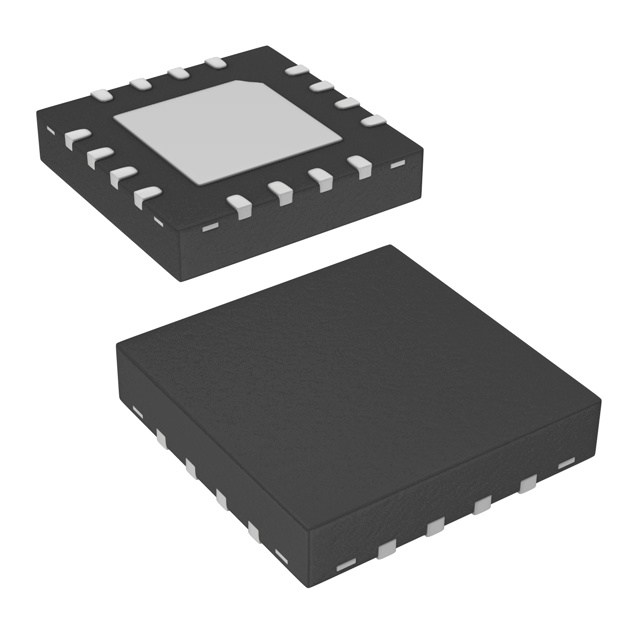

| Package / Case | 16-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 18V |
| Input Type | Non-Inverting |
| Supplier Device Package | 16-QFN (4x4) |
| Rise / Fall Time (Typ) | 13.5ns, 13ns |
| Channel Type | Independent |
| Driven Configuration | High-Side or Low-Side |
| Number of Drivers | 4 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2V |
| Current - Peak Output (Source, Sink) | 2A, 2A |
| Programmable | Not Verified |
