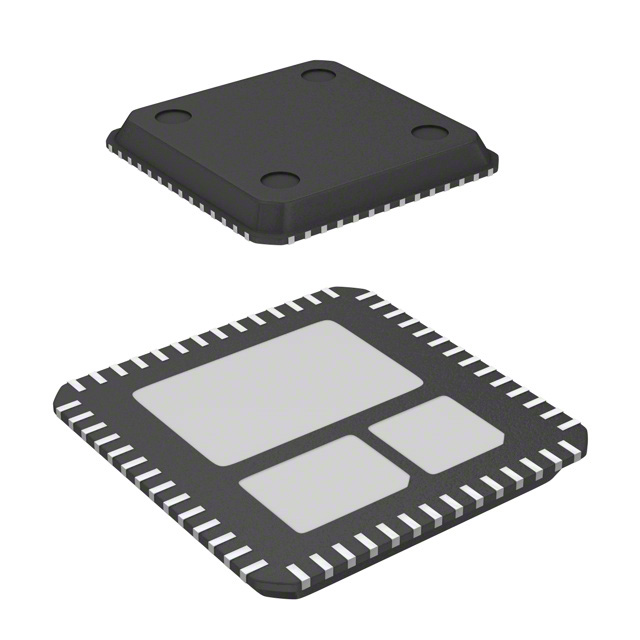

R2J20602NP#G3
IC MOSFET DRVR 12V 40A 56-QFNManufacturer: Renesas Electronics Corporation
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
The Renesas Electronics Corporation R2J20602NP-G3 is a DrMOS device designed for high-efficiency buck converter applications. This half-bridge driver, housed in a 56-HVQFN (8x8) package with an exposed pad, offers a robust solution for demanding power management tasks. It features a peak output current capability of 40A, making it suitable for high-power density designs. Integrated fault protection mechanisms, including current limiting, over-temperature, short circuit, and UVLO, enhance system reliability. The device operates with load and supply voltages ranging from 7V to 7.8V and supports PWM interface control. Its surface mount design and operation over an extended temperature range of -40°C to 150°C (TJ) facilitate integration into various industrial and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Cut Tape (CT) |
| Package / Case | 56-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | PWM |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge |
| Voltage - Supply | 7V ~ 7.8V |
| Rds On (Typ) | - |
| Applications | Buck Converters |
| Current - Output / Channel | - |
| Current - Peak Output | 40A |
| Technology | DrMOS |
| Voltage - Load | 7V ~ 7.8V |
| Supplier Device Package | 56-HVQFN (8x8) |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Load Type | Inductive |
