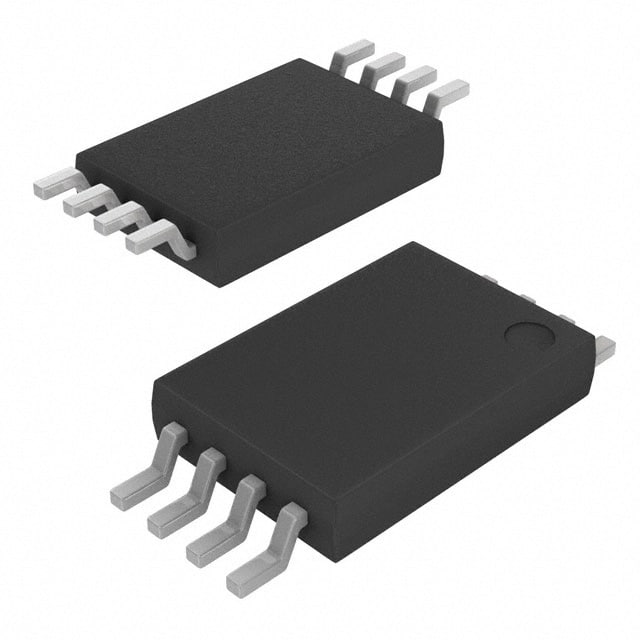

ISL55110IVZ
IC HALF BRIDGE DRVR 100MA 8TSSOPManufacturer: Renesas Electronics Corporation
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge (2) Driver Digital Imaging Power MOSFET 8-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 2.7V ~ 5.5V |
| Rds On (Typ) | 3Ohm |
| Applications | Digital Imaging |
| Current - Output / Channel | 100mA |
| Current - Peak Output | 3.5A |
| Technology | Power MOSFET |
| Voltage - Load | 5V ~ 13.2V |
| Supplier Device Package | 8-TSSOP |
| Fault Protection | - |
| Load Type | Capacitive and Resistive |
