UPA675T-T1-A
MOSFET 2N-CH 16V 0.1A SC88Manufacturer: Renesas Electronics Corporation
Categories: FET, MOSFET Arrays
Quality Control: Learn More

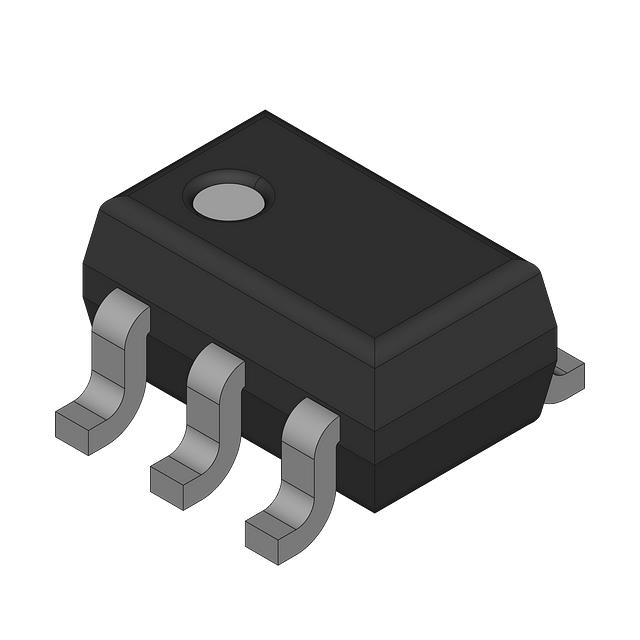

Renesas Electronics Corporation UPA675T-T1-A is a dual 2 N-channel MOSFET array designed for surface mount applications. This component features a drain-source voltage (Vdss) of 16V and a continuous drain current (Id) of 100mA at 25°C. The device offers a maximum power dissipation of 200mW and a typical Rds On of 12 Ohms at 10mA and 4V. Input capacitance (Ciss) is specified at a maximum of 10pF at 3V. The UPA675T-T1-A is housed in a compact SC-88 package (6-TSSOP, SC-88, SOT-363) and is supplied in bulk packaging. This MOSFET array is suitable for various applications including power management and switching circuits in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel (Dual) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 200mW |
| Drain to Source Voltage (Vdss) | 16V |
| Current - Continuous Drain (Id) @ 25°C | 100mA |
| Input Capacitance (Ciss) (Max) @ Vds | 10pF @ 3V |
| Rds On (Max) @ Id, Vgs | 12Ohm @ 10mA, 4V |
| Gate Charge (Qg) (Max) @ Vgs | - |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1.1V @ 10µA |
| Supplier Device Package | SC-88 |
