UPA503T-T1-A
MOSFET 2P-CH 50V 0.1A SC-59Manufacturer: Renesas Electronics Corporation
Categories: FET, MOSFET Arrays
Quality Control: Learn More

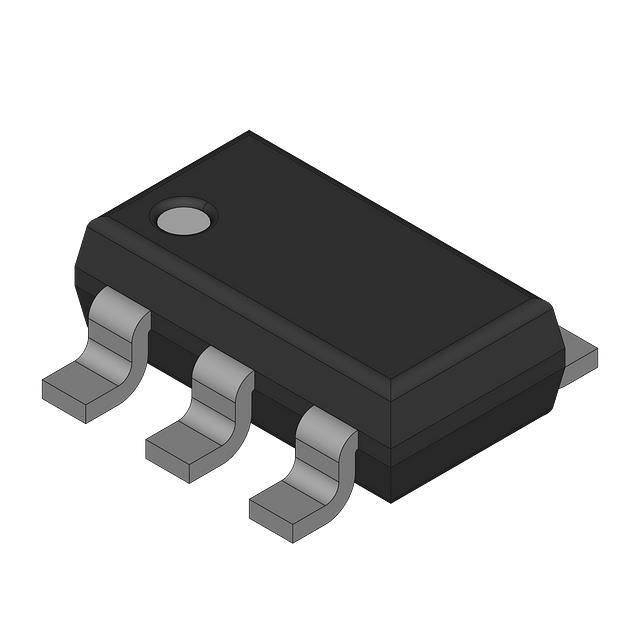

Renesas Electronics Corporation UPA503T-T1-A is a dual P-channel MOSFET array. This component features a Drain-Source Voltage (Vdss) of 50V and a continuous drain current (Id) of 100mA. The device offers a maximum power dissipation of 300mW and a typical on-resistance (Rds On) of 60 Ohms at 10mA and 10V. Input capacitance (Ciss) is specified at 17pF at 5V. The MOSFET array is housed in an SC-59-5, Mini Mold package, suitable for surface mounting. This component finds application in industrial automation and consumer electronics for switching and general-purpose amplification tasks.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Configuration | 2 P-Channel (Dual) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 300mW |
| Drain to Source Voltage (Vdss) | 50V |
| Current - Continuous Drain (Id) @ 25°C | 100mA |
| Input Capacitance (Ciss) (Max) @ Vds | 17pF @ 5V |
| Rds On (Max) @ Id, Vgs | 60Ohm @ 10mA, 10V |
| Gate Charge (Qg) (Max) @ Vgs | - |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 1µA |
| Supplier Device Package | SC-59-5, Mini Mold |
