R2A20168SP#W5
IC DAC 8BIT SRL 16-SOPManufacturer: Renesas Electronics Corporation
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More

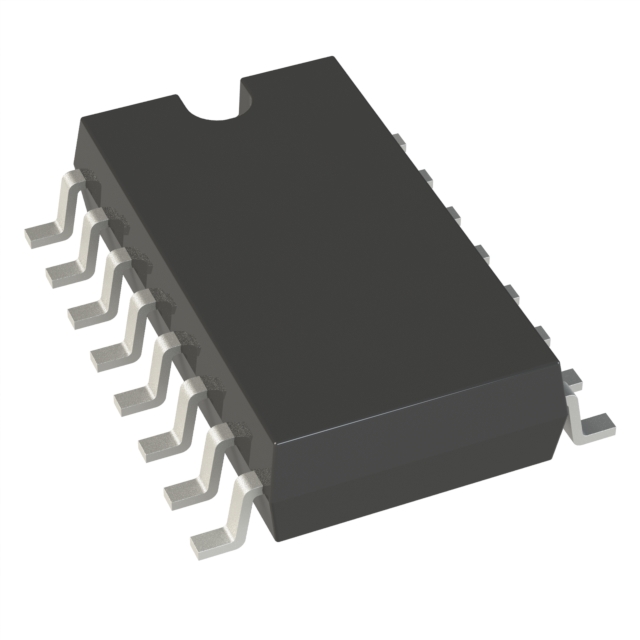

The Renesas Electronics Corporation R2A20168SP-W5 is an 8-bit, 8-channel digital-to-analog converter featuring an R-2R architecture. This component utilizes a serial data interface and provides buffered voltage outputs. The device operates from an analog and digital supply voltage range of 2.7V to 5.5V. It is housed in a 16-SOIC (0.216", 5.50mm Width) package suitable for surface mounting and is supplied in Tape & Reel (TR) packaging. The INL/DNL specification is ±0.7 LSB, with a settling time of 150µs. The R2A20168SP-W5 is designed for applications in consumer electronics and industrial automation, requiring precise analog signal generation from digital inputs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.216"", 5.50mm Width) |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | Serial |
| Reference Type | External |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 150µs |
| Supplier Device Package | 16-SOP |
| Architecture | R-2R |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | -, ±0.7 |
| Differential Output | No |
| Programmable | - |
