R2A20168NP#W5

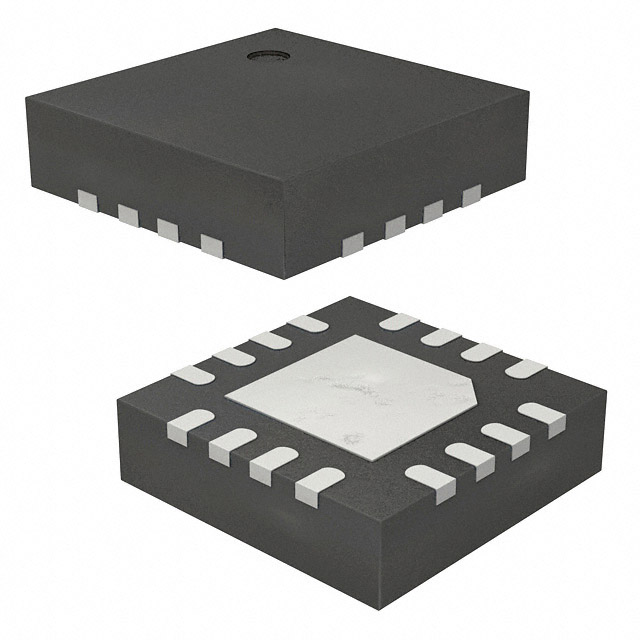

IC DAC 8BIT V-OUT 16QFNManufacturer: Renesas Electronics Corporation
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Renesas Electronics Corporation R2A20168NP-W5 is an 8-bit, 8-channel Digital to Analog Converter (DAC) featuring an R-2R architecture. This device supports an SPI data interface for digital input and provides buffered voltage outputs. Designed for surface mount applications, it is supplied in a 16-QFN (3x3) package. The R2A20168NP-W5 operates across an analog and digital supply voltage range of 2.7V to 5.5V, with a maximum integral nonlinearity (INL) and differential nonlinearity (DNL) of ±1 LSB. Its settling time is rated at 150µs. This component is suitable for use in various industrial and consumer electronics applications requiring precise analog signal generation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Output Type | Voltage - Buffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -30°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Settling Time | 150µs |
| Supplier Device Package | 16-QFN (3x3) |
| Architecture | R-2R |
| Number of D/A Converters | 8 |
| INL/DNL (LSB) | ±1 (Max), ±0.7 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
