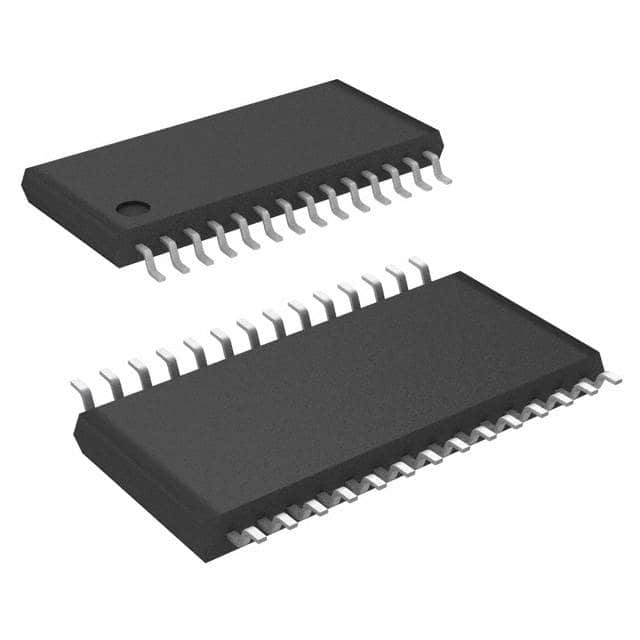

ISL5961IAZ
IC DAC 14BIT A-OUT 28TSSOPManufacturer: Renesas Electronics Corporation
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
14 Bit Digital to Analog Converter 1 28-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Settling Time | - |
| Supplier Device Package | 28-TSSOP |
| Architecture | Current Source |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±2.5, ±1.5 |
| Differential Output | Yes |
| Programmable | Not Verified |
