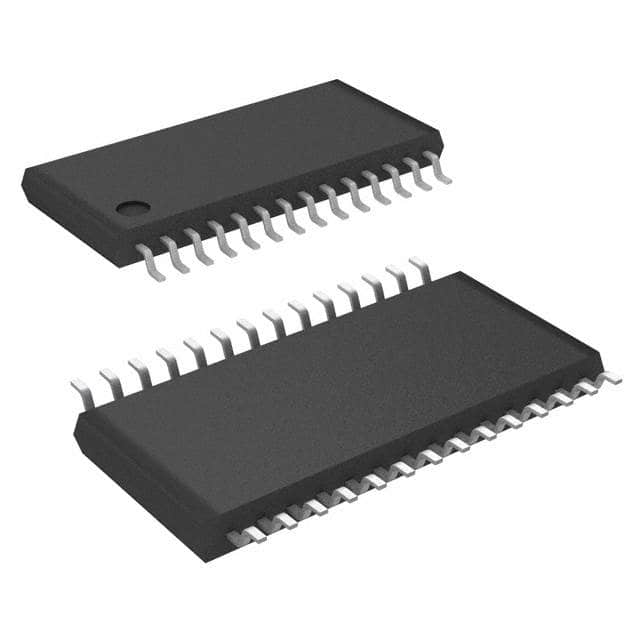

ISL5861IAZ
IC DAC 12BIT A-OUT 28TSSOPManufacturer: Renesas Electronics Corporation
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Renesas Electronics Corporation ISL5861IAZ is a 12-bit, single-channel Digital to Analog Converter (DAC) featuring a current-source architecture. This device supports a parallel data interface and offers differential outputs. The ISL5861IAZ provides excellent linearity performance with Integral Nonlinearity (INL) and Differential Nonlinearity (DNL) of ±0.5 LSB. It is available in a 28-TSSOP surface-mount package. The device operates with analog and digital supply voltages ranging from 2.7V to 3.6V and has an operating temperature range of -40°C to 85°C. The output type is unbuffered current. Applications for this component include industrial control systems, medical equipment, and high-fidelity audio systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Settling Time | - |
| Supplier Device Package | 28-TSSOP |
| Architecture | Current Source |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Differential Output | Yes |
| Programmable | Not Verified |
