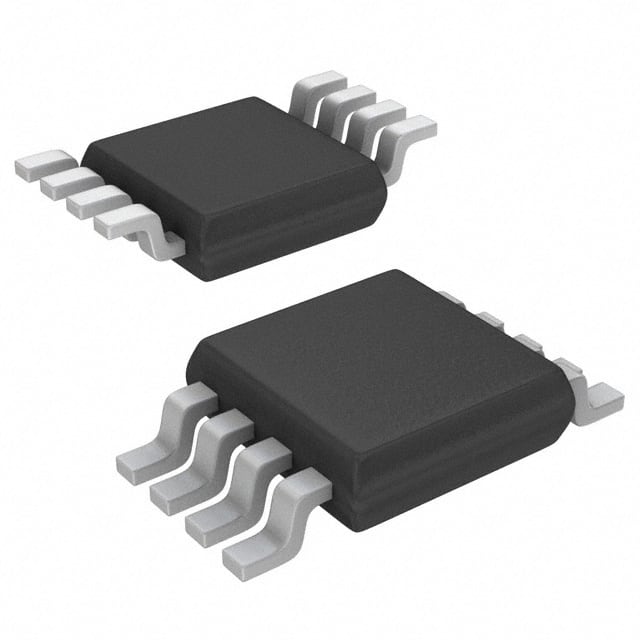

X9312US
IC DGTL POT 50KOHM 100TAP 8SOICManufacturer: Renesas Electronics Corporation
Categories: Digital Potentiometers
Quality Control: Learn More
Renesas Electronics Corporation's X9312US is a single-circuit digital potentiometer featuring a 50k Ohm resistance and 100 discrete tap points, offering linear taper characteristics. This non-volatile memory device utilizes an SPI interface for digital control, enabling precise adjustment of resistance values. The X9312US is housed in an 8-SOIC package, suitable for surface-mount applications. Key specifications include a typical wiper resistance of 40 Ohms, a tolerance of ±20%, and a temperature coefficient of 300ppm/°C. The device operates from a 5V supply and is designed for operation within a temperature range of 0°C to 70°C. This component finds application in various industrial control systems and consumer electronics requiring adjustable analog signal conditioning.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Resistance (Ohms) | 50k |
| Tolerance | ±20% |
| Features | - |
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Memory Type | Non-Volatile |
| Interface | SPI |
| Configuration | Potentiometer |
| Operating Temperature | 0°C ~ 70°C |
| Number of Taps | 100 |
| Voltage - Supply | 5V |
| Taper | Linear |
| Supplier Device Package | 8-SOIC |
| Resistance - Wiper (Ohms) (Typ) | 40 |
| Temperature Coefficient (Typ) | 300ppm/°C |
| Number of Circuits | 1 |
| Programmable | Not Verified |
