X9271TV14-2.7
IC DGT POT 100KOHM 256TP 14TSSOPManufacturer: Renesas Electronics Corporation
Categories: Digital Potentiometers
Quality Control: Learn More
Renesas Electronics Corporation XDCP™ series digital potentiometer, part number X9271TV14-2-7. This single-circuit, 256-tap device offers a nominal resistance of 100k Ohms with a linear taper and ±20% tolerance. It features an SPI interface for control and a non-volatile memory type. Designed for surface mount applications, it is supplied in a 14-TSSOP package. The X9271TV14-2-7 operates within a voltage range of 2.7V to 5.5V and an ambient temperature range of 0°C to 70°C. Typical wiper resistance is 300 Ohms (Max), with a temperature coefficient of ±300ppm/°C. This component finds application in industrial control systems, consumer electronics, and automation.
Additional Information
Series: XDCP™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 100k |
| Tolerance | ±20% |
| Features | Selectable Address |
| Packaging | Tube |

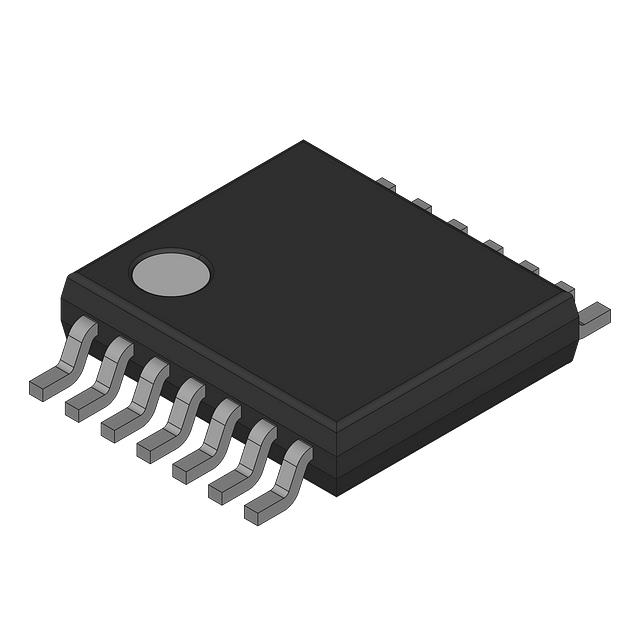

| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Memory Type | Non-Volatile |
| Interface | SPI |
| Configuration | Potentiometer |
| Operating Temperature | 0°C ~ 70°C |
| Number of Taps | 256 |
| Voltage - Supply | 2.7V ~ 5.5V |
| Taper | Linear |
| Supplier Device Package | 14-TSSOP |
| Resistance - Wiper (Ohms) (Typ) | 300 (Max) |
| Temperature Coefficient (Typ) | ±300ppm/°C |
| Number of Circuits | 1 |
| Programmable | Not Verified |
