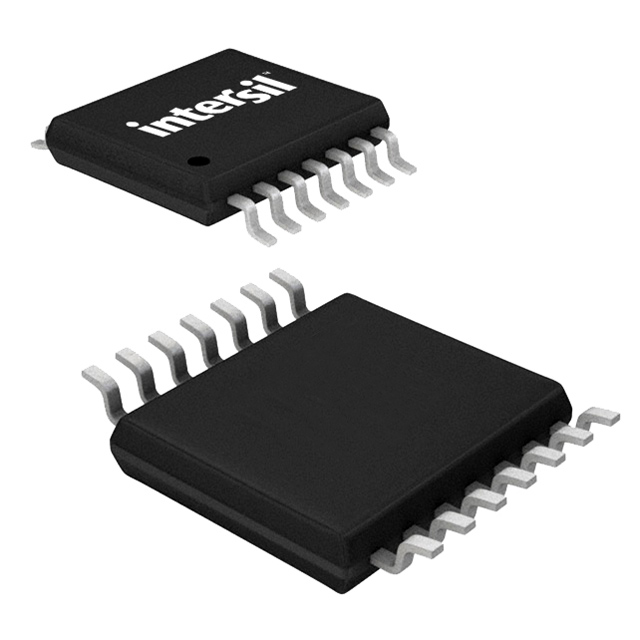

X9119TV14Z-2.7
IC DGTL POT 100KOHM 14TSSOPManufacturer: Renesas Electronics Corporation
Categories: Digital Potentiometers
Quality Control: Learn More
Renesas Electronics Corporation's XDCP™ series digital potentiometer, part number X9119TV14Z-2-7, offers a 100k Ohm resistance with a linear taper and 1024 taps for precise control. This single-circuit device features an I2C interface for efficient communication and a non-volatile memory for configuration retention. Designed for surface mount applications, it is housed in a 14-TSSOP package. The X9119TV14Z-2-7 operates within a voltage range of 2.7V to 5.5V and has an operating temperature range of 0°C to 70°C. Typical resistance between the wiper and terminal is 150 Ohms, with a tolerance of ±20% and a temperature coefficient of ±300ppm/°C. This component is suitable for applications in industrial automation, consumer electronics, and telecommunications.
Additional Information
Series: XDCP™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 100k |
| Tolerance | ±20% |
| Features | Selectable Address |
| Packaging | Tube |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Memory Type | Non-Volatile |
| Interface | I2C |
| Configuration | Potentiometer |
| Operating Temperature | 0°C ~ 70°C |
| Number of Taps | 1024 |
| Voltage - Supply | 2.7V ~ 5.5V |
| Taper | Linear |
| Supplier Device Package | 14-TSSOP |
| Resistance - Wiper (Ohms) (Typ) | 150 |
| Temperature Coefficient (Typ) | ±300ppm/°C |
| Number of Circuits | 1 |
| Programmable | Not Verified |
