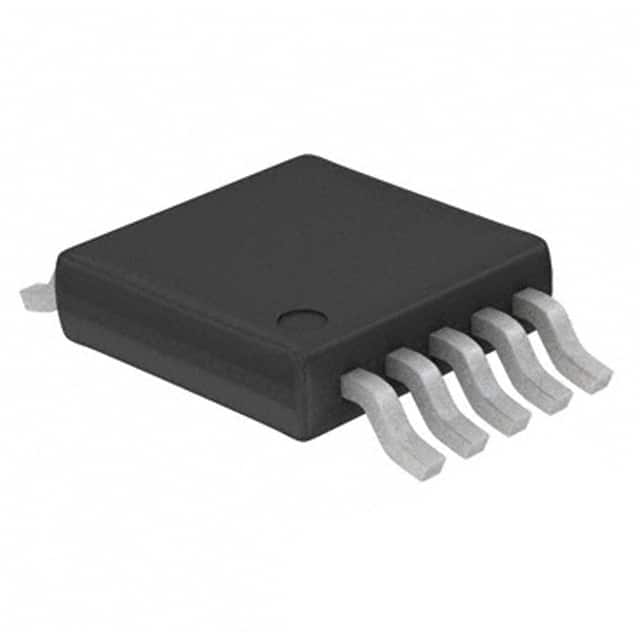

ISL95311WIU10Z
IC DGTL POT 10KOHM 128TAP 10MSOPManufacturer: Renesas Electronics Corporation
Categories: Digital Potentiometers
Quality Control: Learn More
Renesas Electronics Corporation XDCP™ series ISL95311WIU10Z is a single-circuit digital potentiometer featuring 128 taps and a 10k Ohm resistance. This device utilizes a linear taper and offers ±20% tolerance with a typical wiper resistance of 70 Ohms. The ISL95311WIU10Z communicates via an I2C interface, supporting selectable addresses for cascaded configurations. Its non-volatile memory retains settings, and it operates within a 2.7V to 5.5V supply voltage range. The component's typical temperature coefficient is ±45ppm/°C, and it is rated for operation between -40°C and 85°C. Supplied in a 10-MSOP package, this surface-mount component is suitable for applications in industrial control, consumer electronics, and telecommunications.
Additional Information
Series: XDCP™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 10k |
| Tolerance | ±20% |
| Features | Selectable Address |
| Packaging | Tube |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Memory Type | Non-Volatile |
| Interface | I2C |
| Configuration | Potentiometer |
| Operating Temperature | -40°C ~ 85°C |
| Number of Taps | 128 |
| Voltage - Supply | 2.7V ~ 5.5V |
| Taper | Linear |
| Supplier Device Package | 10-MSOP |
| Resistance - Wiper (Ohms) (Typ) | 70 |
| Temperature Coefficient (Typ) | ±45ppm/°C |
| Number of Circuits | 1 |
| Programmable | Not Verified |
Request a Quote
