ISL22424WFV14Z-TK

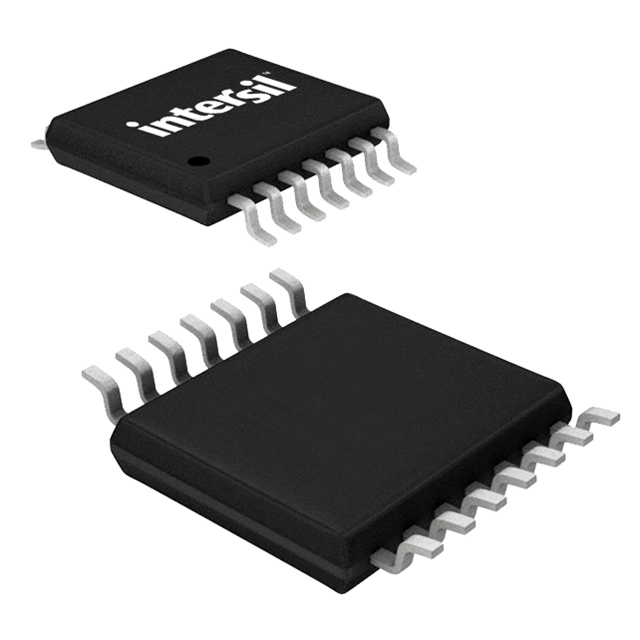

IC DGT POT 10KOHM 256TAP 14TSSOPManufacturer: Renesas Electronics Corporation
Categories: Digital Potentiometers
Quality Control: Learn More
The Renesas Electronics Corporation ISL22424WFV14Z-TK is a dual-channel digital potentiometer from the XDCP™ series. This component offers 256 discrete tap points per channel, providing a total resistance of 10k Ohms with a typical wiper resistance of 70 Ohms. It features a linear taper and a ±20% tolerance. Communication is managed via an SPI interface, and the device incorporates non-volatile memory for configuration retention. Operating within a temperature range of -40°C to 125°C, it requires a supply voltage between ±2.25V and 5.5V. The temperature coefficient is typically ±85ppm/°C. Packaged in a 14-TSSOP surface-mount configuration, this device is supplied on a tape and reel. Applications for this component are found in industrial control systems, audio processing, and instrumentation.
Additional Information
Series: XDCP™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 10k |
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Memory Type | Non-Volatile |
| Interface | SPI |
| Configuration | Potentiometer |
| Operating Temperature | -40°C ~ 125°C |
| Number of Taps | 256 |
| Voltage - Supply | ±2.25V ~ 5.5V |
| Taper | Linear |
| Supplier Device Package | 14-TSSOP |
| Resistance - Wiper (Ohms) (Typ) | 70 |
| Temperature Coefficient (Typ) | ±85ppm/°C |
| Number of Circuits | 2 |
| Programmable | Not Verified |
