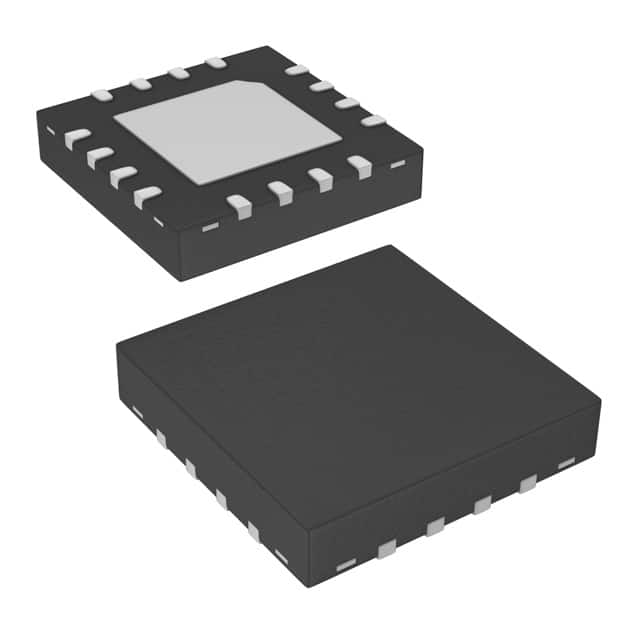

ISL22424WFR16Z-TK
IC DGTL POT 10KOHM 256TAP 16QFNManufacturer: Renesas Electronics Corporation
Categories: Digital Potentiometers
Quality Control: Learn More
Renesas Electronics Corporation's ISL22424WFR16Z-TK is a dual-channel, 10k Ohm digital potentiometer from the XDCP™ series. This component features 256 discrete tap positions per channel, offering precise resistance setting capabilities. Communication is handled via a serial peripheral interface (SPI), enabling efficient control and configuration. The device utilizes non-volatile memory for storing wiper settings, ensuring persistence across power cycles. Designed for surface-mount applications, it is housed in a compact 16-QFN (4x4) package with an exposed pad for enhanced thermal performance. Operating across a temperature range of -40°C to 125°C, the ISL22424WFR16Z-TK supports a supply voltage of ±2.25V to 5.5V. Its linear taper and typical wiper resistance of 70 Ohms, coupled with a ±20% overall resistance tolerance and a ±85ppm/°C temperature coefficient, make it suitable for applications in industrial automation, consumer electronics, and test and measurement equipment. This component is supplied in tape and reel packaging.
Additional Information
Series: XDCP™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 10k |
| Tolerance | ±20% |
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Type | Non-Volatile |
| Interface | SPI |
| Configuration | Potentiometer |
| Operating Temperature | -40°C ~ 125°C |
| Number of Taps | 256 |
| Voltage - Supply | ±2.25V ~ 5.5V |
| Taper | Linear |
| Supplier Device Package | 16-QFN (4x4) |
| Resistance - Wiper (Ohms) (Typ) | 70 |
| Temperature Coefficient (Typ) | ±85ppm/°C |
| Number of Circuits | 2 |
| Programmable | Not Verified |
