RAA230222GSB#HA0
IC REG BUCK 3.3V 3A DL 20HTSSOPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More

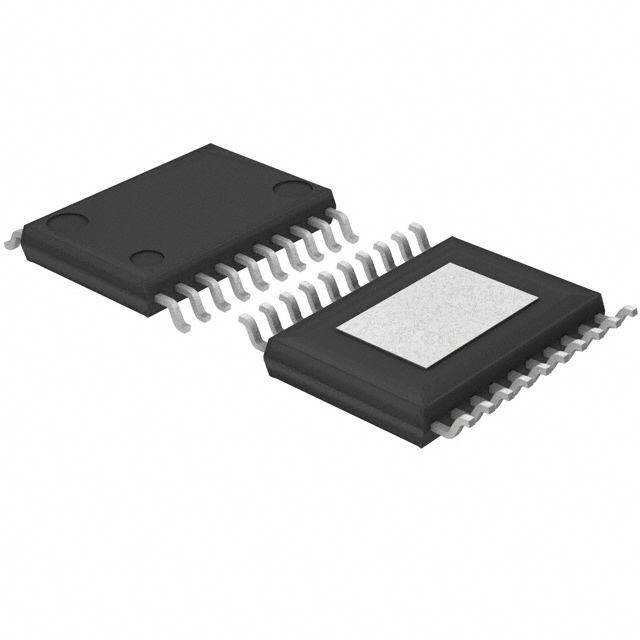

The Renesas Electronics Corporation RAA230222GSB-HA0 is a dual-output, 3A synchronous buck switching regulator. This component offers fixed 3.3V outputs, with an optional 5V output capability, and operates with a switching frequency of 1.1MHz. Designed for surface mounting, it is supplied in a 20-HTSSOP package with an exposed pad for enhanced thermal performance. The device supports input voltages ranging from 4.5V to 16V. Applications for this efficient DC-DC converter include automotive systems, industrial power supplies, and consumer electronics where reliable voltage regulation is critical. The RAA230222GSB-HA0 is delivered on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Function | Step-Down |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.1MHz |
| Voltage - Input (Max) | 16V |
| Topology | Buck |
| Supplier Device Package | 20-HTSSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | - |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 3.3V (5V) |
