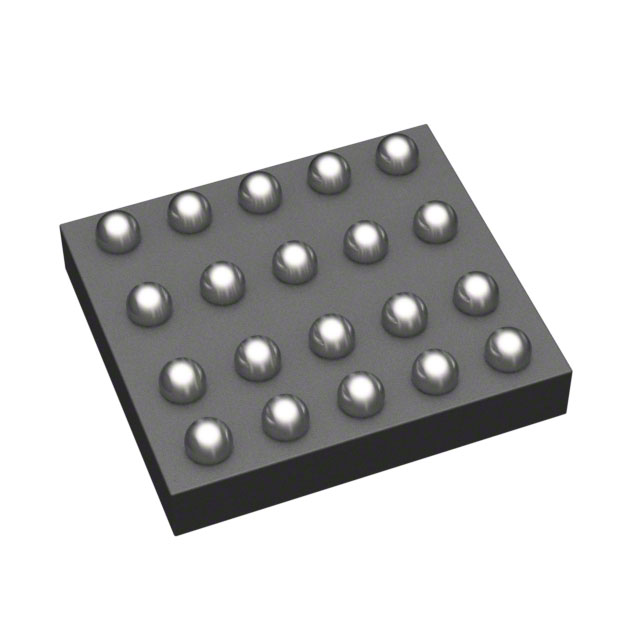

RAA207705GBM#HC0
IC REG BUCK ADJ 5A 20CSPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
Renesas Electronics Corporation RAA207705GBM-HC0 is a high-performance adjustable buck switching regulator designed for efficient power conversion. This single-output device delivers up to 5A and operates with a switching frequency of up to 2MHz, enabling compact inductor selection. Featuring an integrated synchronous rectifier, the RAA207705GBM-HC0 minimizes conduction losses, enhancing overall efficiency. The output voltage is adjustable from 0.8V to 5V, with a minimum input voltage requirement of 3V and a maximum of 16V. Packaged in a 20-CSP (2.67x2.37) format and supplied on tape and reel, this component is suitable for surface mount applications. Its robust design and operating temperature range of -40°C to 125°C (TJ) make it ideal for use in demanding applications within the industrial and automotive sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFBGA, CSPBGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 2MHz |
| Voltage - Input (Max) | 16V |
| Topology | Buck |
| Supplier Device Package | 20-CSP (2.67x2.37) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5V |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 0.8V |
