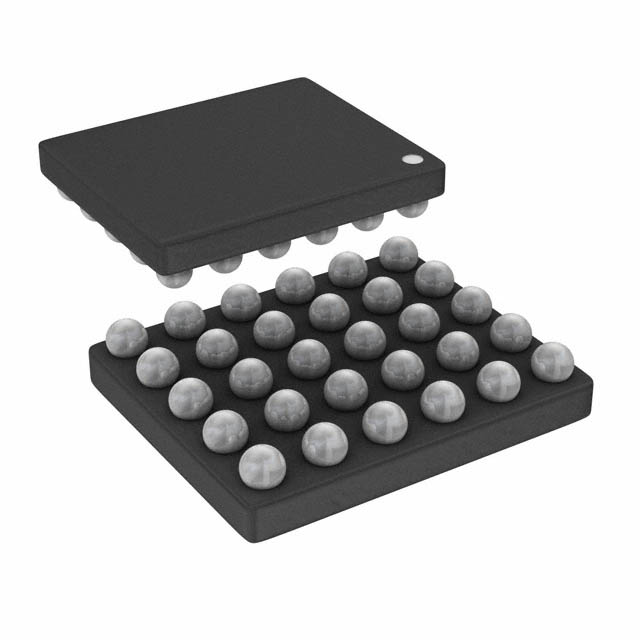

RAA207704GBM#HC0
IC REG BUCK ADJ 10A 30CSPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Renesas Electronics Corporation RAA207704GBM-HC0 is a high-performance, synchronous buck switching regulator. This component is designed for applications requiring up to 10A output current and offers an adjustable output voltage ranging from 0.8V to 5V, with a maximum input voltage of 16V. Featuring a switching frequency up to 2MHz, the RAA207704GBM-HC0 utilizes a 30-CSP (2.67x3.37) package for compact surface mount integration. Its advanced buck topology and integrated synchronous rectifier ensure high efficiency. This device is well-suited for demanding applications across various industries, including telecommunications, industrial automation, and data centers. The operating temperature range is -40°C to 125°C (TJ). This component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-WFBGA, CSPBGA |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 10A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | Up to 2MHz |
| Voltage - Input (Max) | 16V |
| Topology | Buck |
| Supplier Device Package | 30-CSP (2.67x3.37) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5V |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 0.8V |
