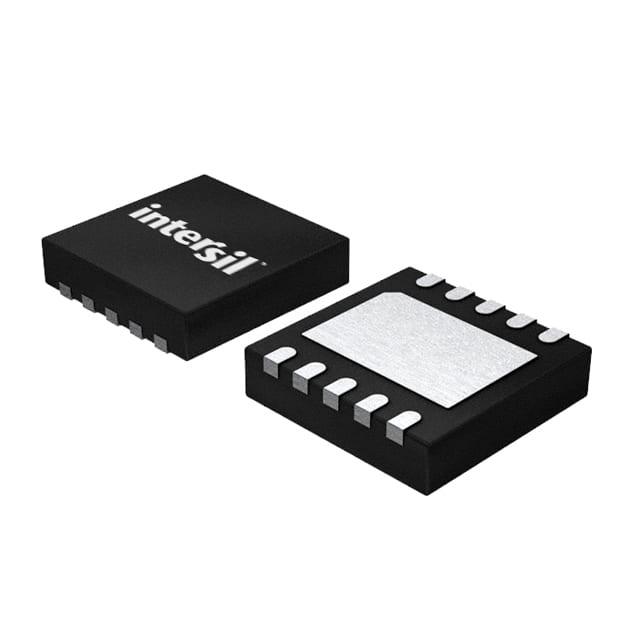

ISL97701IRZ-T7
IC REG BOOST ADJ 1.2A 10DFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
Renesas Electronics Corporation's ISL97701IRZ-T7 is a high-performance, adjustable positive boost switching regulator. This component is designed for step-up voltage conversion, offering an output voltage range from 4.3V up to 28V. It features a single output with a maximum switch current capability of 1.2A, operating at a switching frequency of 1MHz. The ISL97701IRZ-T7 supports input voltages from 2.3V to 5.5V and utilizes a boost topology. Its 10-VFDFN Exposed Pad package facilitates efficient surface mount assembly. This device is well-suited for applications in battery-powered devices and portable electronics where efficient power management is critical. The component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-VFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 1.2A (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Boost |
| Supplier Device Package | 10-DFN (3x3) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 28V |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 4.3V |
