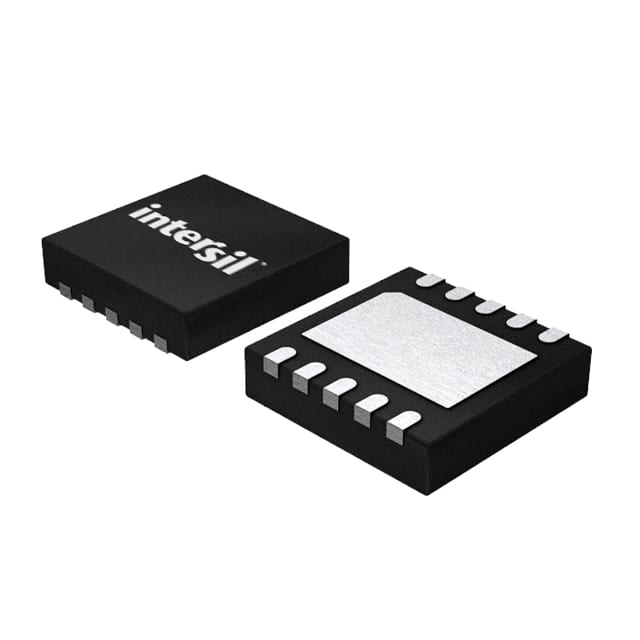

ISL97701IRZ
IC REG BOOST ADJ 1.2A 10DFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
Renesas Electronics Corporation ISL97701IRZ is a 1.2A switch current boost switching regulator. This device features adjustable positive output voltage with a minimum of 4.3V and a maximum of 28V. Operating with an input voltage range of 2.3V to 5.5V, the ISL97701IRZ utilizes a boost topology and switches at a frequency of 1MHz. The output is configured as positive and adjustable. This component is housed in a 10-VFDFN Exposed Pad package, specifically a 10-DFN (3x3) supplier device package, for surface mount applications. It is designed for operation across a temperature range of -40°C to 85°C. The ISL97701IRZ is employed in various applications including portable electronics, power supplies, and battery-powered devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-VFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up |
| Current - Output | 1.2A (Switch) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Boost |
| Supplier Device Package | 10-DFN (3x3) |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 28V |
| Voltage - Input (Min) | 2.3V |
| Voltage - Output (Min/Fixed) | 4.3V |
