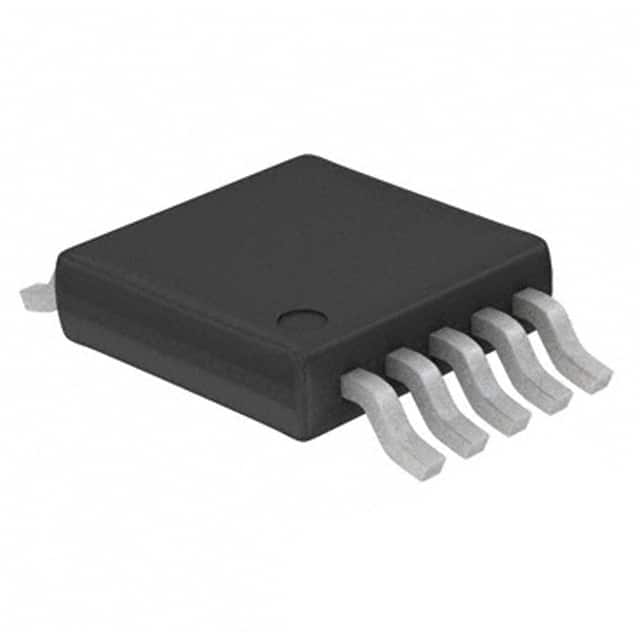

ISL97536IUZ
IC REG BUCK ADJ 1A 10MSOPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
Renesas Electronics Corporation ISL97536IUZ is an adjustable positive step-down (buck) switching regulator designed for efficient power conversion. This device features a 1.4MHz switching frequency and a 1A output current capability, with an adjustable output voltage ranging from 0.8V up to 6V. The input voltage range for the ISL97536IUZ is 2.5V to 6V. It incorporates a synchronous rectifier for enhanced efficiency and is housed in a 10-MSOP package, suitable for surface mounting. This component is commonly utilized in portable electronics and power management applications. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 1.4MHz |
| Voltage - Input (Max) | 6V |
| Topology | Buck |
| Supplier Device Package | 10-MSOP |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 6V |
| Voltage - Input (Min) | 2.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
