ISL95210HRZ-T7A
IC REG BUCK PROG 0.6V 10A 32QFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
Renesas Electronics Corporation ISL95210HRZ-T7A is a high-performance, single-output buck switching regulator. This device supports an input voltage range from 2.97V to 5.5V and delivers a programmable output voltage from 0.6V up to 2.16V with a maximum output current of 10A. The ISL95210HRZ-T7A features selectable switching frequencies of 400kHz, 533kHz, and 800kHz, offering flexibility in balancing efficiency and component size. Its integrated synchronous rectifier enhances efficiency, and the device is housed in a 32-VFQFN Exposed Pad package for surface mounting. This regulator is commonly utilized in power management solutions for computing, networking, and industrial applications requiring efficient DC-DC conversion. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

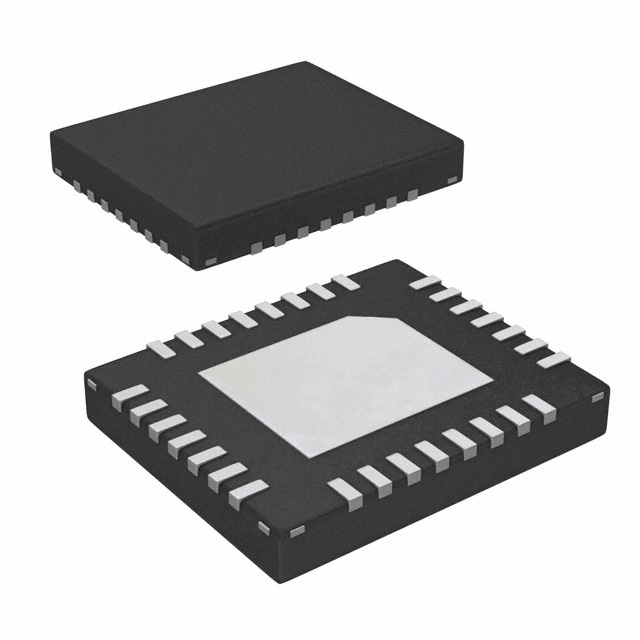

| Package / Case | 32-VFQFN Exposed Pad |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 10A |
| Operating Temperature | -10°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 400kHz, 533kHz, 800kHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck |
| Supplier Device Package | 32-QFN (6x4) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 2.16V |
| Voltage - Input (Min) | 2.97V |
| Voltage - Output (Min/Fixed) | 0.6V |
