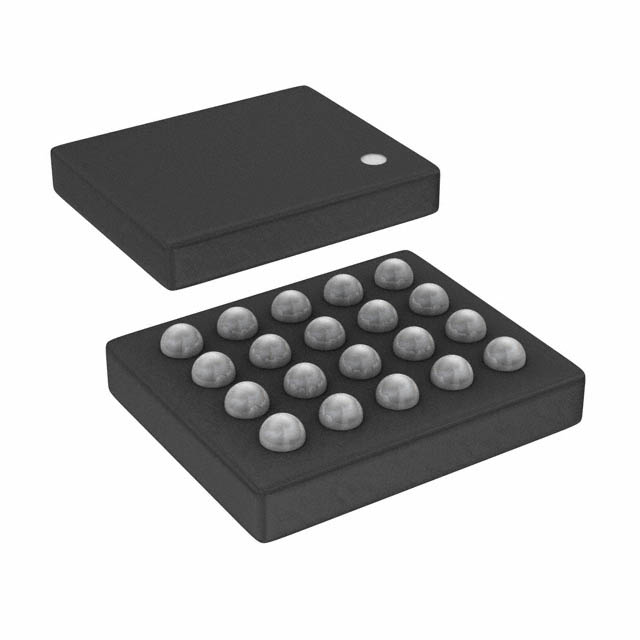

ISL9110AIITAZ-TS2765
IC REG BUCK-BST ADJ 1.2A 20WLCSPManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
Renesas Electronics Corporation ISL9110AIITAZ-TS2765 is a highly efficient buck-boost switching regulator, delivering flexible power conversion for demanding applications. This device operates with an input voltage range of 1.8V to 5.5V, supporting adjustable positive output voltages from 1V up to 5.2V. With a fixed output current capability of 1.2A, it is well-suited for designs requiring stable regulation across varying input conditions.
The ISL9110AIITAZ-TS2765 features a 2.5MHz switching frequency, contributing to its compact solution size and excellent transient response. Its integrated synchronous rectifier minimizes conduction losses, enhancing overall efficiency. The topology is a buck-boost configuration, enabling it to step-up or step-down the input voltage to the desired output. This component is presented in a 20-WLCSP (2.55x2.05) package, suitable for surface mount assembly, and supplied on tape and reel. Applications span portable electronics, wireless communication devices, and power management solutions where high efficiency and small footprint are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-UFBGA, WLCSP |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Up/Step-Down |
| Current - Output | 1.2A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 2.5MHz |
| Voltage - Input (Max) | 5.5V |
| Topology | Buck-Boost |
| Supplier Device Package | 20-WLCSP (2.55x2.05) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 5.2V |
| Voltage - Input (Min) | 1.8V |
| Voltage - Output (Min/Fixed) | 1V |
