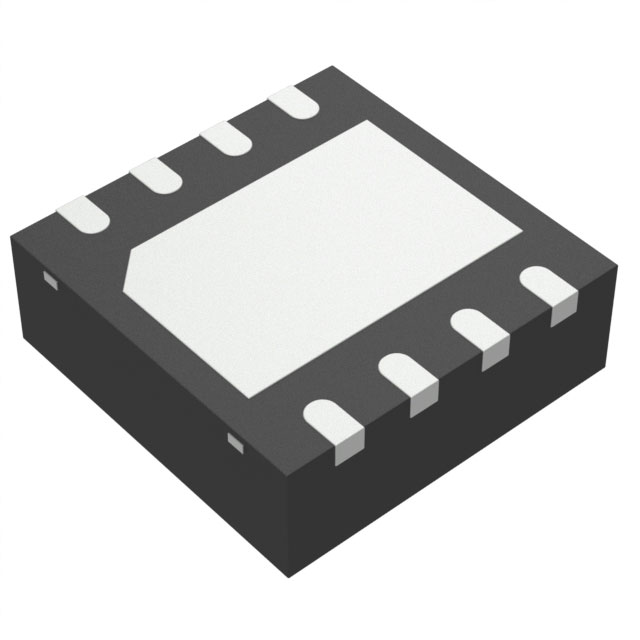

ISL85413FRTZ-T7A
IC REG BUCK ADJ 300MA 8TDFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
Renesas Electronics Corporation's ISL85413FRTZ-T7A is a compact, high-efficiency synchronous buck switching regulator. This adjustable output device delivers up to 300mA from an input voltage range of 3.5V to 40V, with a configurable output voltage from 0.6V up to 34V. Featuring a 700kHz switching frequency, it is optimized for space-constrained applications. The ISL85413FRTZ-T7A utilizes a buck topology with integrated synchronous rectification for enhanced efficiency. It is supplied in an 8-TDFN (3x3) package with an exposed pad for improved thermal performance, ideal for surface mount assembly. This component is commonly found in industrial, automotive, and consumer electronics power management systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 700kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | 8-TDFN (3x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 34V |
| Voltage - Input (Min) | 3.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
