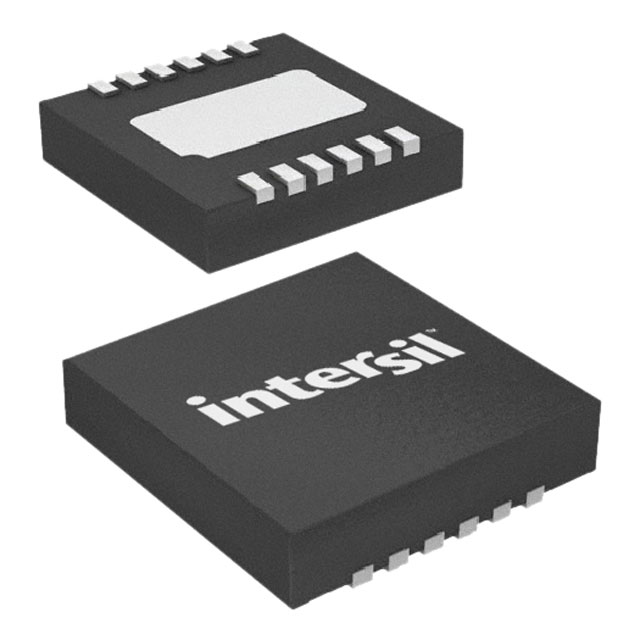

ISL85410FRZ-T7A
IC REG BUCK ADJ 1A 12DFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Renesas Electronics Corporation ISL85410FRZ-T7A is a highly efficient, adjustable output buck switching regulator. This device provides a single positive output with a current capability of 1A, adjustable from 0.6V up to 34V. It operates with an input voltage range of 3V to 40V and features a flexible switching frequency that can be set between 300kHz and 2MHz, with a default of 500kHz. The ISL85410FRZ-T7A integrates a synchronous rectifier for improved efficiency and is housed in a compact 12-VFDFN exposed pad package, suitable for surface mounting. This component is commonly utilized in industrial, automotive, and consumer electronics applications requiring robust and efficient power conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 500kHz, 300kHz ~ 2MHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | 12-DFN (4x3) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 34V |
| Voltage - Input (Min) | 3V |
| Voltage - Output (Min/Fixed) | 0.6V |
