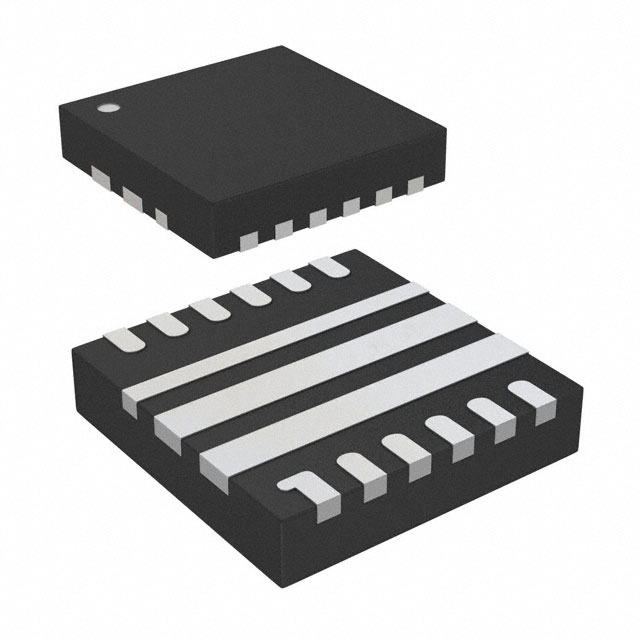

ISL85012FRZ-T
IC REG BUCK ADJ 12A 15TQFNManufacturer: Renesas Electronics Corporation
Categories: DC DC Switching Regulators
Quality Control: Learn More
The Renesas Electronics Corporation ISL85012FRZ-T is a high-performance, adjustable output, buck switching regulator IC designed for demanding applications. This component delivers a continuous output current of 12A and features a flexible input voltage range from 3.8V to 18V, with a maximum output voltage capability of 18V. The output voltage is adjustable down to 0.6V, offering significant design versatility. Operating at selectable switching frequencies of 300kHz or 600kHz, the ISL85012FRZ-T employs a synchronous buck topology for enhanced efficiency. Its 15-TQFN (3.5x3.5) package with surface mount mounting type facilitates compact board designs. The integrated synchronous rectifier further optimizes power conversion. This device is suitable for use in industrial automation, telecommunications infrastructure, and advanced computing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 15-WFQFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 12A |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Positive |
| Frequency - Switching | 300kHz, 600kHz |
| Voltage - Input (Max) | 18V |
| Topology | Buck |
| Supplier Device Package | 15-TQFN (3.5x3.5) |
| Synchronous Rectifier | Yes |
| Voltage - Output (Max) | 18V |
| Voltage - Input (Min) | 3.8V |
| Voltage - Output (Min/Fixed) | 0.6V |
